If installed: Removing strut brace in the rear of the engine compartment
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

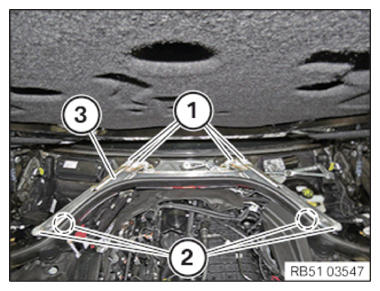

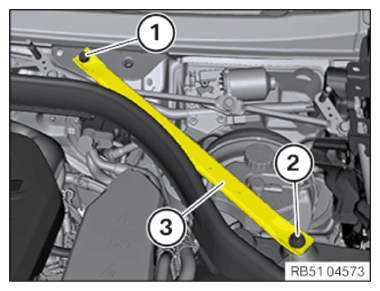

- Install the strut brace (3).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Cross-brace to bulkhead Hexagon screw M 10x25 Replace screws.
Tightening torque 56 Nm Angle of rotation 90° - Replace screws (2).
Parts: Screws
- Tighten down screws (2).TIGHTENING TORQUE SPECIFICATION
Cross-brace to shock tower Hexagon screw M 10x55 Replace screws.
Tightening torque 56 Nm Angle of rotation 90°
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Removing left and right wiper arm
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing wiper arm
NOTE:
RISK OF DAMAGE
Damage to the wiper console.
If the wiper arm is removed without a special tool, the wiper console can break.
Damage to the wiper console.
If the wiper arm is removed without a special tool, the wiper console can break.
- Only remove the wiper arm with the described special tool.
- Do not lever off the wiper arm, as otherwise the wiper console can break at the predetermined breaking point for active pedestrian protection.

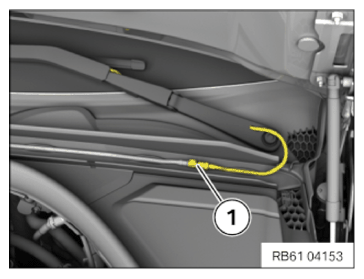

- Disconnect the washer fluid hose (1) at the separation point and feed out from the windshield panel guide.

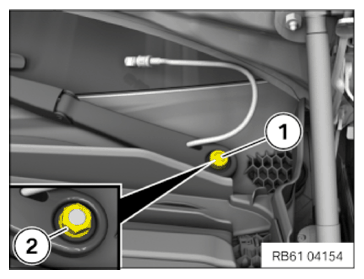

- Remove the protective cap (1).
- Loosen nut (2).

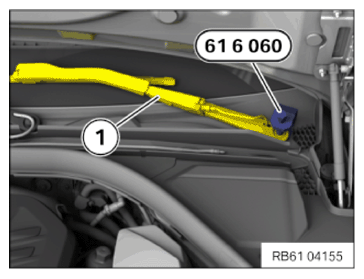

- Detach wiper arm (1) with special tool 0 493 441 (61 6 060)
.
Remove windshield panel cover

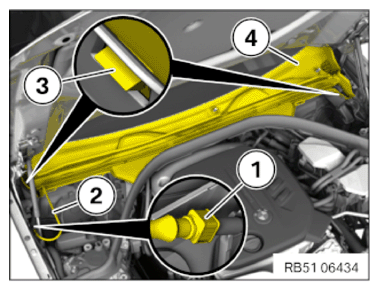

- Release snap fastener (1) of the washer fluid hose (2) and put the washer fluid hose (2) to one side.
- Unclip the clips (3) on the windshield panel cover (4).

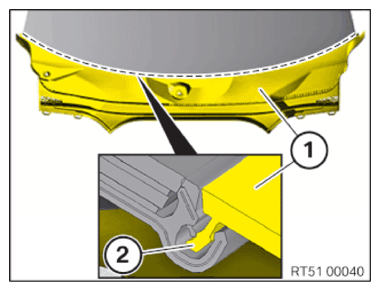

- Beginning from the side, pull up windshield panel cover (1) out of the detent (2).
Removing trailing link at spring bolt
NOTE: TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted. - Version A:

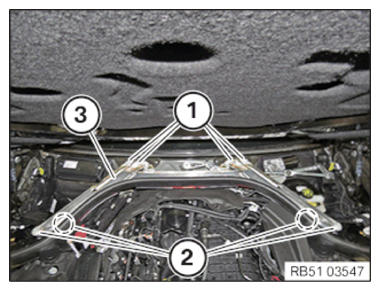

- Loosen screws (1) and (2).
- Remove tension strut (3) at the shock tower upwards.
- Version B:
- Loosen screws (1) and (2).
- Remove tension strut (3) at the shock tower upwards.
Install tension strut on shock tower
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
- Version A:
- Install the tension strut (3) on the shock tower.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Tension strut on bulkhead M 10x25 screw Tightening torque 56 Nm - Replace screws (2).
Parts : Screws
- Tighten down screws (2).TIGHTENING TORQUE SPECIFICATION
Tension strut to shock tower screw
Replace screws.Joining torque
Angle of rotation56 Nm
90° - Version B:
- Install tension strut (3) on the shock tower.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION
Tension strut on bulkhead M 10x25 screw Tightening torque 56 Nm - Replace the screw (2).
Parts : Screw
- Tighten down screw (2).TIGHTENING TORQUE SPECIFICATION
Tension strut to shock tower screw
Replace screws.Joining torque
Angle of rotation56 Nm
90°Installing windshield panel cover
NOTE: RISK OF DAMAGE
Damage caused by water ingress into the vehicle.
Water ingress into the vehicle may result in damage to components, malfunctions and corrosion.- Ensure correct installation of the components.
- Only use undamaged components.
NOTE: TECHNICAL INFORMATION
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line.
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics. - Press the cowl cover (1) into the detent (2) beginning from the side.
Install left and right wiper arm
NOTE: Description is for left component only. Procedure on the right side is identical.Installing left and right wiper arm
NOTE: TECHNICAL INFORMATION
The window wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate the window wiper system one time, to ensure the window wiper system has the correct installation position. - Connect the wiper arm (3).

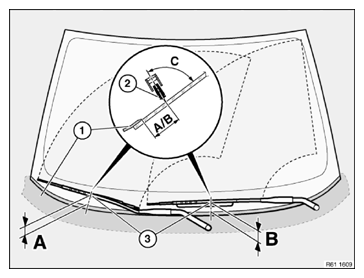

- Correctly position the wiper arm (2) in relation to the window edge (1).TECHNICAL DATA DESCRIPTION
Distance from window pane edge to wiper blade Wiper arm right (A) 57.5 ± 5 mm Wiper arm left (B) 63.3 ± 4 mm - Tighten nut (2).TIGHTENING TORQUE SPECIFICATION
Windshield wiper arm Combination hexagon nut Tightening torque 35 Nm - Connect the protective cap (1).
- Feed the washer fluid hose (1) into the guide of the windshield panel and connection at the separation point.
