Evacuating the air conditioning
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
PHEV, hybrid: The engine is switched off.
- Carry out the service function:
- Body
- Heating and air conditioning functions
- Drain/fill up refrigerant circuit
- Remove the sealing caps from the refrigerant filler necks.

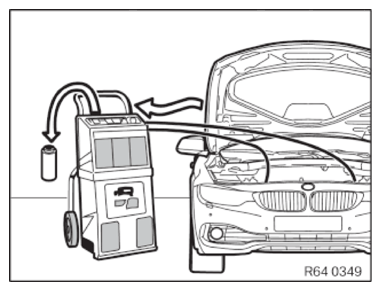

- Connect the high pressure line of the A/C service station with the vehicle's high-pressure connection (red).
- Connect the low-pressure line of the A/C service station with the vehicle's low-pressure connection (blue).
- Start the suction process on the A/C service station.
- Adhere to an suction time of at least 30 min.
- During suction process, allow the blower of the heating and air-conditioning unit to run at middle blower speed.
- If the vacuum does not remain stable during suction process:
- Run the ABL for leaks in the refrigerant circuit.
- Rectify leaks in the refrigerant circuit.
