Disconnecting the cable of the vertical dynamic platform (VDP) from the spring strut

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

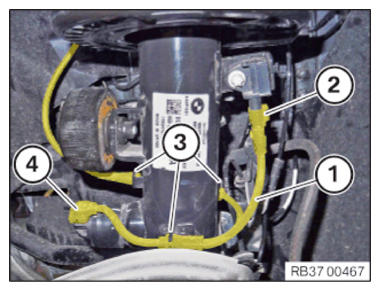

Unlock and disconnect the plug connection (2) on the vertical acceleration sensor.
Unlock and disconnect the plug connection (4) on the spring strut.
Release the cable (1) from the holders (3).

Courtesy of BMW OF NORTH AMERICA, INC.
