Differentiation of the brake calipers of different equipment specification
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Pay attention to the different tightening torques of the bleed valves!

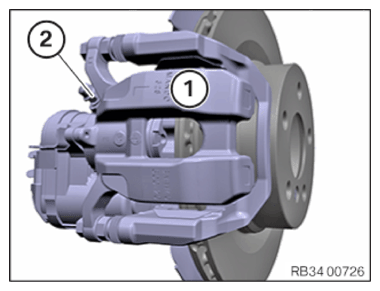

- Illustration shows the brake caliper (1) on the rear axle made of aluminum and is not painted.
- For venting the brake caliper (1), a bleed valve (2) is available.TIGHTENING TORQUE SPECIFICATION
Bleed valve of the rear brake caliper, made of aluminum and not painted Bleed valve Tightening torque 10 Nm - Pay attention to the different tightening torques of the bleed valves!

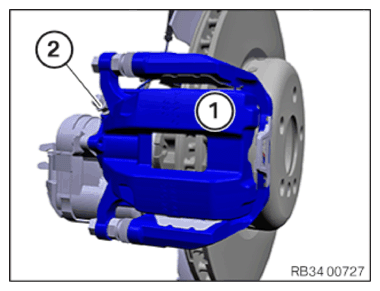

- Illustration shows the brake caliper (1) on the rear axle made of steel and is always painted.
- For venting the brake caliper (1), a bleed valve (2) is available.TIGHTENING TORQUE SPECIFICATION
Bleed valve of the rear brake caliper, made of steel and always painted Bleed valve Tightening torque 17 Nm
