Check the vent holes of the battery
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Exhaust.
Injury hazard! Danger of explosion!
Injury hazard! Danger of explosion!
- Assign the vent holes correctly.
- Route the vent hose correctly.
NOTE:
TECHNICAL INFORMATION

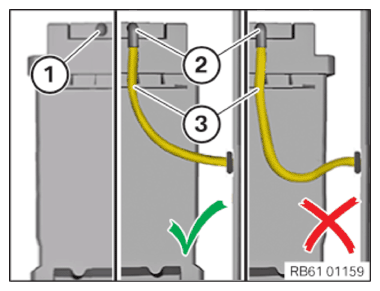

The battery has two ventilation openings positioned opposite to each other:
One ventilation opening (1) must be closed correctly with a dummy plug.
The vent hose (3) must be correctly connected and routed at the other ventilation opening (2).
The battery has two ventilation openings positioned opposite to each other:
One ventilation opening (1) must be closed correctly with a dummy plug.
The vent hose (3) must be correctly connected and routed at the other ventilation opening (2).
Check
- Check if the ventilation opening (1) is correctly closed with a dummy plug.
Result
» No dummy plug.
Measure
- Close the vent hole (1) correctly with a dummy plug.
Check
- Check whether the vent hose (3) is correctly connected to the ventilation opening (2).
Result
» The vent hose (3) is not correctly connected.
Measure
- Connect the vent hose (3) correctly to the ventilation opening (2).
Check
- Check if the vent hose (3) is laid with a slope towards the outside (no siphon formation) .
Result
» The vent hose (3) is not routed correctly as shown on the right side.
Measure
- Route the vent hose (3) correctly as shown in the center.
