Attaching the left or right output shaft to the rear axle differential

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Secure the output shaft on the rear axle differential

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

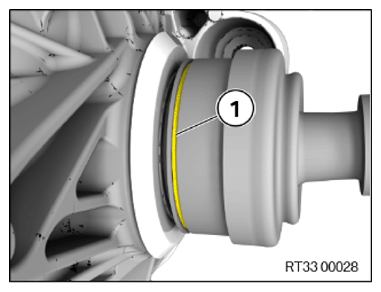

Position the special tool described below at the circular groove (1) of the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

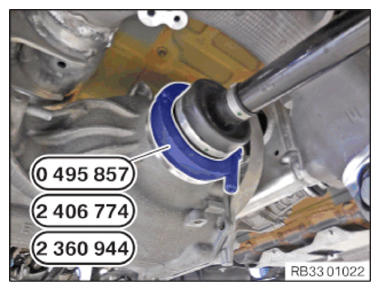

Drive in the output shaft with a suitable special tool 0 495 857 (33 5 125), 2 406 774 or 2 360 944 and a rubber mallet in the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.
