Attaching the control arm to the wheel carrier

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

Replace the screw (1).
Parts: Screw

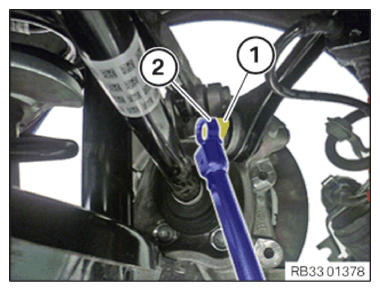

Screw in screw (1) by hand with a few turns and turn it using standard tool (2) until hand-tight.

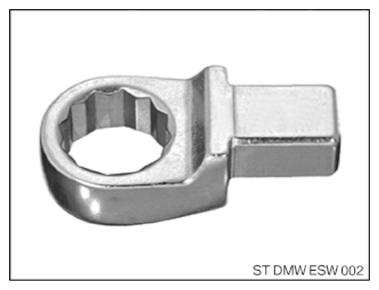

Standard tool: Ring insert tool for double hexagon head

Ring insertion tool for external double hexagon

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Ring insertion tool for external double hexagon

The screw connection is tightened with the torque wrench later in the NORMAL POSITION .
