Attach the parked-car heating
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

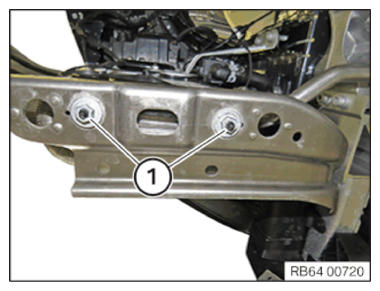

- Tighten the nuts (1) on the lower holder of the auxiliary heater.TIGHTENING TORQUE SPECIFICATION
Stationary heating system to holder/body Nut
screwTightening torque
Tightening torque19 Nm
19 Nm - Position the stationary heating system.

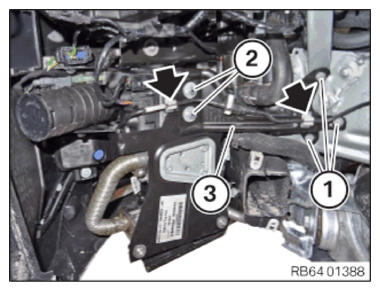

- Feed in and install the upper holder (3) of the auxiliary heater.
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATION
Silencer on holder/holder on body screw Tightening torque 8 Nm Nut tigntening torque 8 Nm - Tighten the screws (1).TIGHTENING TORQUE SPECIFICATION
Silencer on holder/holder on body screw Tightening torque 8 Nm Nut tigntening torque 8 Nm - Clip in the fuel line at the lock mechanisms (arrows).
