Adjust the striker on the hood

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Check

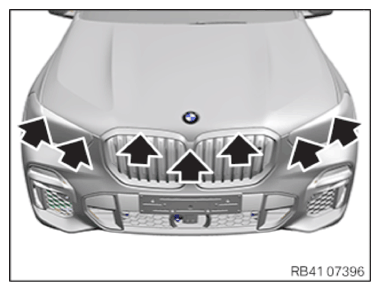

Check the gap dimensions between the hood and the adjoining components.

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA DESCRIPTION

Gap dimension hood to ornamental grille surround
1 hood; 2 ornamental grille surround	4.6 ^+1.2_-1.2 mm
Courtesy of BMW OF NORTH AMERICA, INC.	1.5 ^+1.5_-1.5 mm

TECHNICAL DATA DESCRIPTION

Gap dimension hood to headlight
1 hood; 2 headlight	7.2 ^+1.8_-1.8 mm
Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA DESCRIPTION

Gap dimension hood to headlight
1 hood; 2 headlight	5.1 ^+2.1_-2.1 mm
Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA DESCRIPTION

Gap dimension hood to side panel
1 hood; 2 side panel	3.3 ⁺¹_-1 mm
Courtesy of BMW OF NORTH AMERICA, INC.	0.6 ^+1.6_-1.6 mm

Result

» Gap dimensions do not correspond to the specifications.

Measure

Adjust the striker.

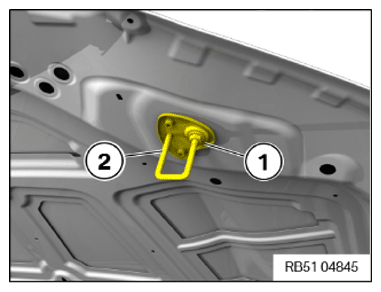

Adjust striker (2) by turning nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting hood stop pads

NOTE: Perform the steps on the left and right side.

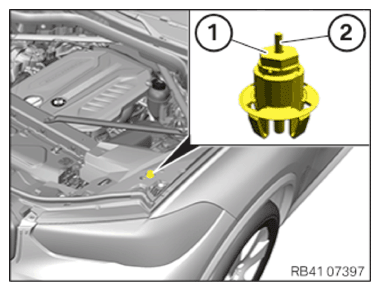

Screw in stop pads (1) fully until the pin (2) can be pulled out.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull pin (2) out approx. 5 mm.
Slowly close the hood. The pin (2) will be pressed into stop pad (1) while doing so.
Raise hood.
Unscrew stop pad (1) until stop pad is flush with upper edge of pin (2).

Check

Check the gap dimensions between the hood and the adjoining components.

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA DESCRIPTION

Gap dimension hood to ornamental grille surround
1 hood; 2 ornamental grille surround	4.6 ^+1.2^-1.2 mm
Courtesy of BMW OF NORTH AMERICA, INC.	1.5 ^+1.5_-1.5 mm

TECHNICAL DATA DESCRIPTION

Gap dimension hood to headlight
1 hood; 2 headlight Courtesy of BMW OF NORTH AMERICA, INC.	7.2 ^+1.8^-1.8 mm

TECHNICAL DATA DESCRIPTION

Gap dimension hood to headlight
1 hood; 2 headlight Courtesy of BMW OF NORTH AMERICA, INC.	5.1 ^+2.1_-2.1 mm

TECHNICAL DATA DESCRIPTION

Gap dimension hood to side panel
1 hood; 2 side panel a	3.3 ⁺¹^-1 mm
Courtesy of BMW OF NORTH AMERICA, INC.	0.6 ^+1.6_-1.6 mm

Result

» Gap dimensions do not correspond to the specifications.

Measure

Adjust the striker.

Adjust striker (2) by turning nut (1).
Adjusting hood stop pads

NOTE: Perform the steps on the left and right side.

Courtesy of BMW OF NORTH AMERICA, INC.
Screw in stop pads (1) fully until the pin (2) can be pulled out.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull pin (2) out approx. 5 mm.
Slowly close the hood. The pin (2) will be pressed into stop pad (1) while doing so.
Raise hood.
Unscrew stop pad (1) until stop pad is flush with upper edge of pin (2).
