Tension the coil spring
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Clean coil spring to remove heavy contamination.

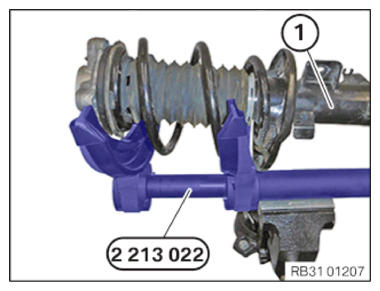

- Hook the spring strut (1) to the coil spring with the pressure plates.
- Make sure that the coils of the coil spring are completely placed in the slots of the pressure plates.NOTE: TECHNICAL INFORMATION

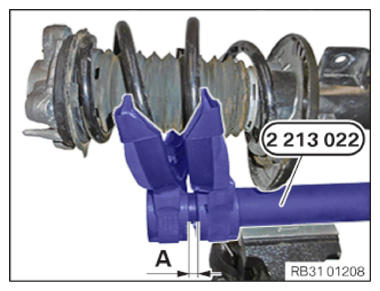

Different variants may be installed depending on the vehicle equipment. - Tension the coil spring until the dimension (A) is reached at the special tool 2 213 022 (31 3 340)
.
Dimension (A) of the equipment version:
- Basis and Plug-in Hybrid Electric Vehicle = 40-50 mm
- Sport and BMW M Performance Automobile = 10 mm
The dimension (A) must not be less than.
