Securing the propeller shaft on the rear axle differential

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to the prop shaft during installation.
Non-observance of the installation guidelines for the prop shaft on the rear axle differential may cause severe damage.

Always replace the recessed nut on the rear axle differential. Screw lock must be available.
Strictly observe a minimum hardening time of three hours after having screwed in the recessed nut. The hardening time may be longer at lower temperatures.

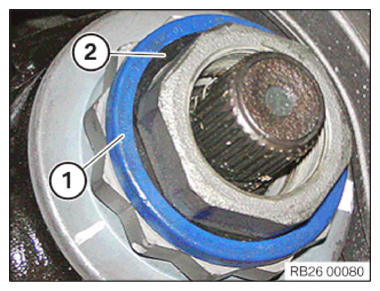

Remove retaining ring (1) and seal (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove recessed nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

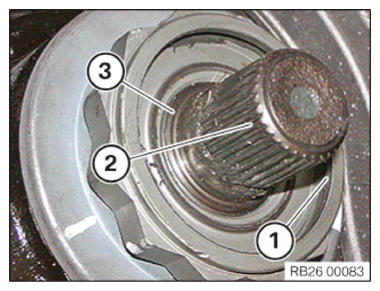

Clean all residue from the recessed collar (1) of the twelve-edge flange nut, the gearing on the bevel drive pinion (2) and the taper (3) and degrease them.
Top up the collar insert (1) with grease.
CONSUMABLE DESCRIPTION

Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754

Courtesy of BMW OF NORTH AMERICA, INC.

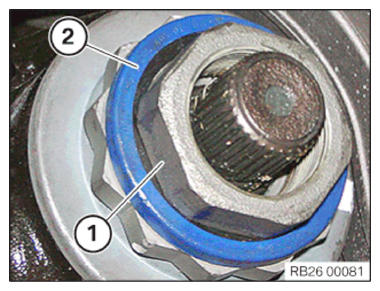

Replace recessed nut (1), seal and retaining ring (2).
Parts: Recessed nut, seal, retaining ring
Insert the recessed nut (1) with the seal into the recessed collar of the twelve-edge flange nut.
Mount retaining ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Use thread file (1) to remove any adhesive residue on the thread.
The thread pitch must be correct!

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the output flange .
Failure to observe the greasing specifications may lead to damage on the output flange .
- Do not contaminate the thread of the output flange with grease.
Courtesy of BMW OF NORTH AMERICA, INC.

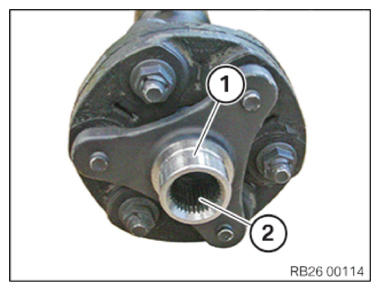

Clear away adhesive residue from the thread (1) of the flange and clean.
Clean gearing (2).
Grease gearing (2).
CONSUMABLE DESCRIPTION

Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754

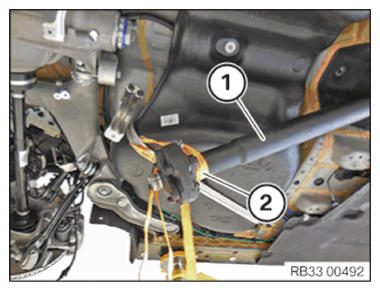

Loosen the luggage strap (2) from the prop shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.

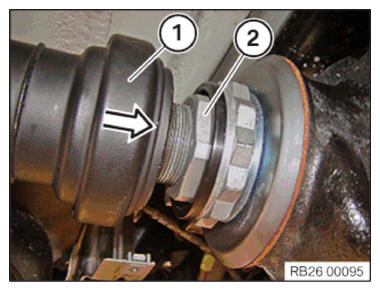

Push the prop shaft (1) in arrow direction against the recessed nut (2) up to the stop.
Manually screw the recessed nut (2) at least two threads onto the prop shaft (1) and tighten it.

Courtesy of BMW OF NORTH AMERICA, INC.
Position central mount (1).
Position the center mount (1) with the designation TOP at the top in the transmission tunnel.

Courtesy of BMW OF NORTH AMERICA, INC.

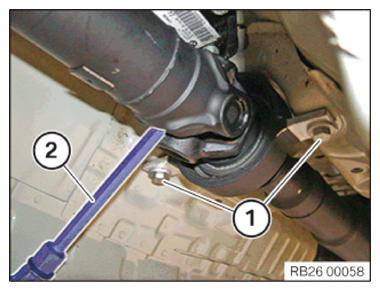

Screw in the screws (1) by a few turns.
Variant with a wide universal joint:
Secure the propeller shaft from twisting with a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
Variant with a narrow universal joint:

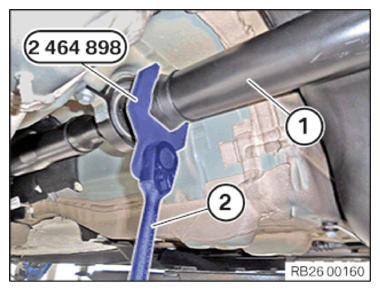

Secure the propeller shaft (1) from twisting with the special tool 2 464 898 and a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the flange nut .
Failure to observe the installation specifications may lead to serious damage to the flange nut and the rear axle differential .
- Do not use the twelve-edge flange nut as counter support.
- Screw in the recessed nut within 5 minutes.
Courtesy of BMW OF NORTH AMERICA, INC.

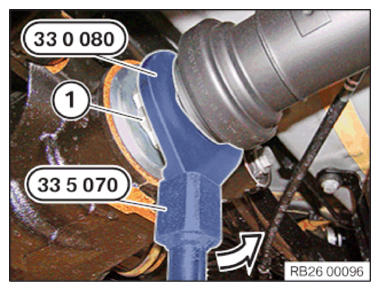

Tighten the recessed nut counterclockwise in the arrow direction with special tools 0 495 554 (33 5 070) and 0 496 959 (33 0 080).

TIGHTENING TORQUE SPECIFICATION

Propeller shaft to rear axle differential
recessed nut Replace recessed nut	tightening torque 100 Nm

After the propeller shaft is installed and the recessed nut is screwed in, strictly observe a hardening time of minimum 3 hours .
During this time the vehicle must not be moved or pushed!

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Central mount to body
M8	Tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the prop shaft during installation .
Non-observance of the installation guidelines for the prop shaft on the rear axle differential may cause severe damage .

Always replace the recessed nut on the rear axle differential. Screw lock must be available.
Strictly observe a minimum hardening time of three hours after having screwed in the recessed nut. The hardening time may be longer at lower temperatures.

Remove retaining ring (1) and seal (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove recessed nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the recessed collar (1) of the twelve-edge flange nut and the gearing on the bevel drive pinion (2) of all residues and degrease.
Top up the collar insert (1) with grease.
CONSUMABLE DESCRIPTION

Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754

Courtesy of BMW OF NORTH AMERICA, INC.
Replace recessed nut (1), seal and retaining ring (2).
Parts: Recessed nut, seal, retaining ring

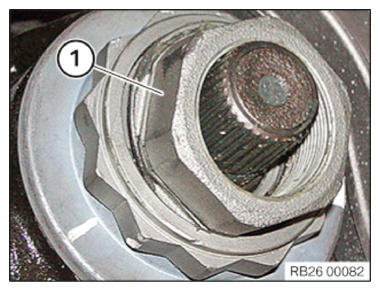

Insert the recessed nut (1) with the seal into the recessed collar of the twelve-edge flange nut.
Mount retaining ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.

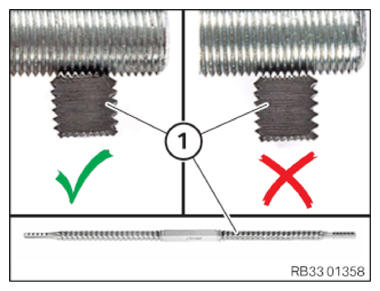

Use thread file (1) to remove any adhesive residue on the thread.
The thread pitch must be correct!

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the output flange .
Failure to observe the greasing specifications may lead to damage on the output flange .
- Do not contaminate the thread of the output flange with grease.
Courtesy of BMW OF NORTH AMERICA, INC.

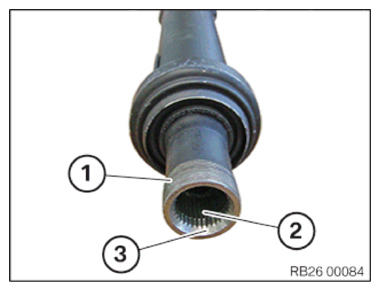

Remove adhesive residue from the thread (1) of the propeller shaft hub and clean it.
Clean hub gearing (2) and taper (3).
It is essential to grease the gearing (2) and taper (3).
CONSUMABLE DESCRIPTION

Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754

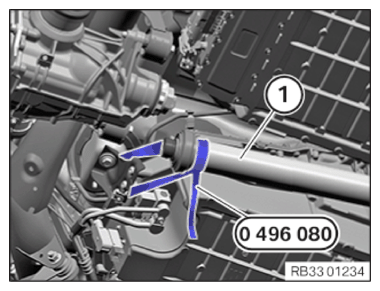

Detach the special tool 0 496 080 (33 5 206) from the propeller shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.

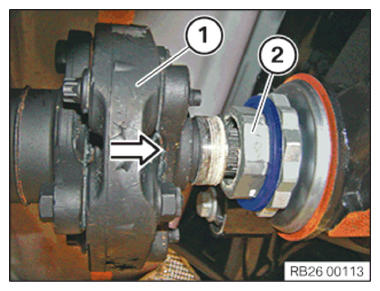

Push the prop shaft (1) in arrow direction against the recessed nut (2) up to the stop.
Manually screw the recessed nut (2) at least 2 threads onto the prop shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

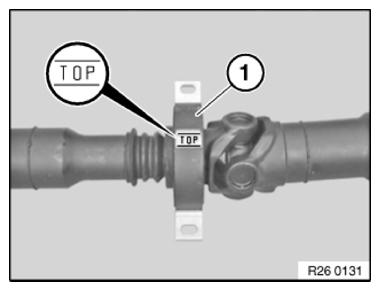

Position the center mount (1) with the designation TOP at the top in the transmission tunnel.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the central mount in the transmission tunnel.

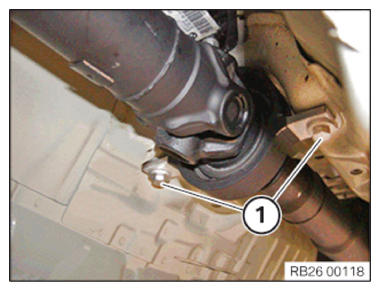

Screw in the screws (1) by a few turns.
Variant with a wide universal joint:
Secure the propeller shaft from twisting with a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
Variant with a narrow universal joint:
Secure the propeller shaft (1) from twisting with the special tool 2 464 898 and a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the flange nut .
Failure to observe the installation specifications may lead to serious damage to the flange nut and the rear axle differential .
- Do not use the twelve-edge flange nut as counter support.
- Screw in the recessed nut within 5 minutes.
Courtesy of BMW OF NORTH AMERICA, INC.

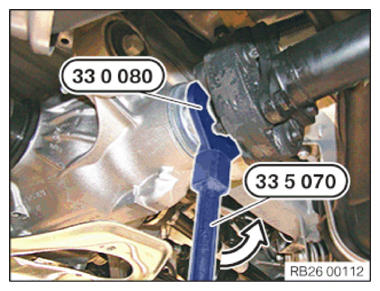

Screw the recessed nut counterclockwise in the arrow direction with special tools 0 495 554 (33 5 070) and 0 496 959 (33 0 080) .

When doing so, do not use the twelve-edge flange nut (1) for counter support.

TIGHTENING TORQUE SPECIFICATION

Propeller shaft to rear axle differential
recessed nut Replace recessed nut.	Tightening torque	100 Nm

After the propeller shaft is installed and the recessed nut is screwed in, strictly observe a hardening time of minimum 3 hours .
During this time the vehicle must not be moved or pushed!

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Central mount to body
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
