Removing the front output shafts (on the mobile lifting table)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

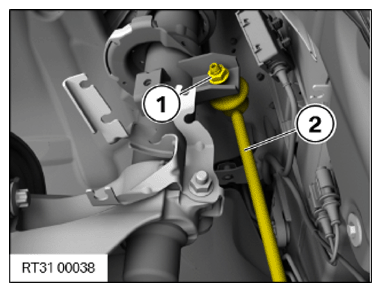

- Release nut (1). When doing this, counter support at the Torx socket if necessary.
- Detach the anti-roll bar link (2) from the spring strut.

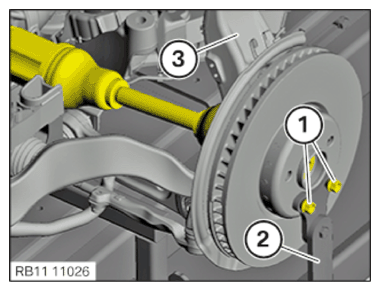

- Loosen screws (1).
- Remove the swivel bearing mount (2) and set it aside.
- Hold the swivel bearing (3) with the workshop crane 2 220 718
.

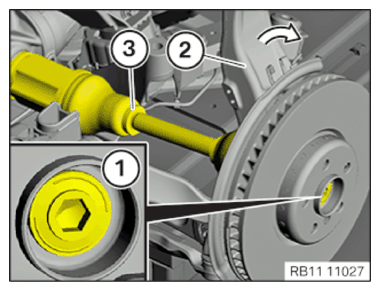

- Loosen screw (1).
- Tilt the swivel bearing (2) slightly forwards in the direction of the arrow.
- Loosen and remove the output shaft (3) at the front axle differential with a suitable tool.

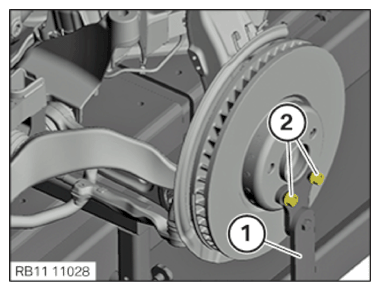

- Install the stand (1) of the swivel bearing.
- Tighten down screws (2).
