Remove transmission cross-member
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

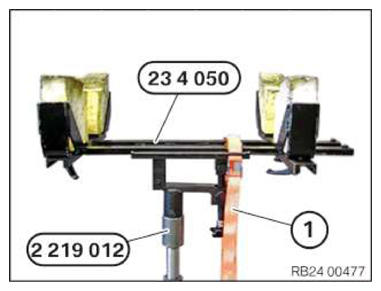

- Support the transmission using special tools 0 495 498 (23 4 050) and 2 219 012 .
- Secure the transmission with a tensioning strap (1).

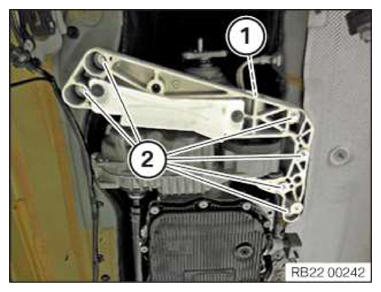

- Loosen screw (1).
- Loosen screws (2).
- Remove transmission cross-member.
- Support the transmission using special tools 0 495 498 (23 4 050) and 2 219 012 .
- Secure the transmission with the luggage strap (1).
- Only B47 and B57:

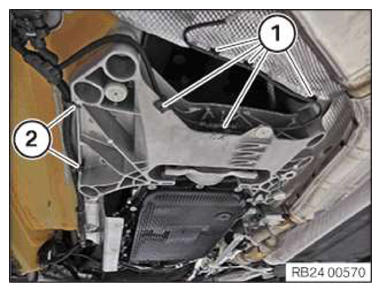

Release the clamps (1) and (2).
Set the cable to one side.

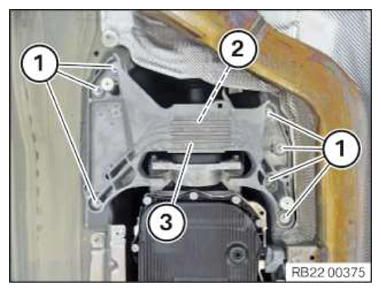

- Loosen screws (1).
- Loosen screw (2).
- Remove the transmission cross member (3) and lower the transmission a little.
