Remove automatic transmission (GA8HP75HZ)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
RISK OF DAMAGE
Damage to the engine block.
Serious damage to the engine block and transmission due to damaged and corroded screws.
Damage to the engine block.
Serious damage to the engine block and transmission due to damaged and corroded screws.
- It is imperative that protruding threads of the transmission bolts are checked for corrosion and damage prior to removal.
- It is imperative that all rust is removed from corroded threads and that they are cleaned prior to removal.
- Replace rusted and damaged bolts.
NOTE:
RISK OF DAMAGE
Damage of components in the engine compartment.
When removing the transmission, the tilting of the engine may cause damage to components in the engine compartment.
Damage of components in the engine compartment.
When removing the transmission, the tilting of the engine may cause damage to components in the engine compartment.
- Before removing the transmission: Support the engine.
- Protect engine from tipping movements.
- Follow the specifications in the repair instructions.
NOTE:
RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
- Use only the approved transmission oil.
- Check the transmission oil level after completing the repair.

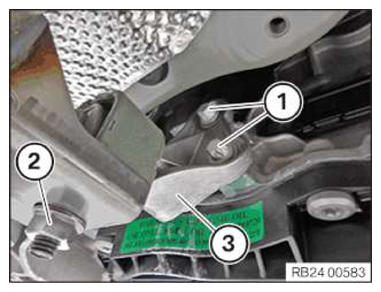

- Loosen screws (1).
- Remove holder (2).

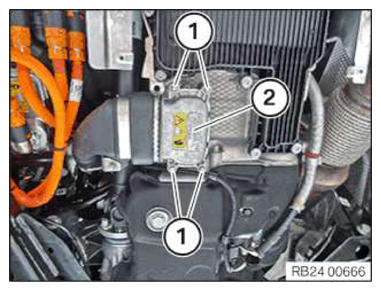

- Loosen screws (3).
- Remove holder (4).

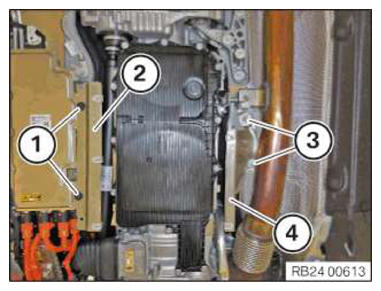

- Unscrew the bolts (1) and the nut (2).
- Remove holder (3).WARNING: Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.

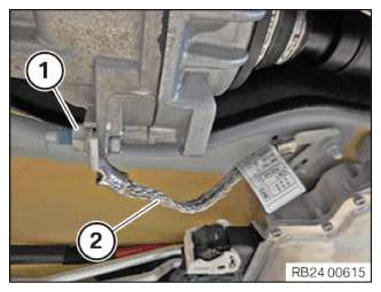

- Loosen nut (1).
- Release ground strap (2) from the transfer box (VTG).WARNING: Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.

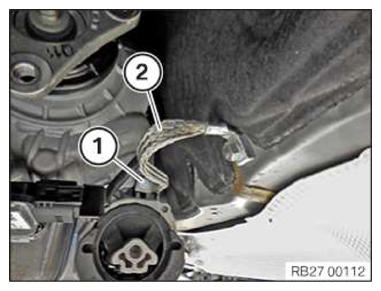

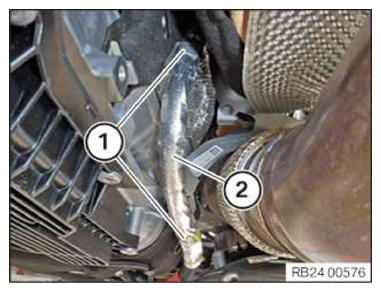

- Loosen screw (1).
- Release ground strap (2) from the transmission mounting bracket.

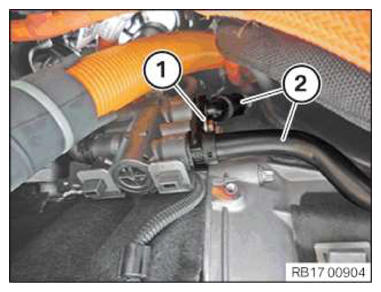

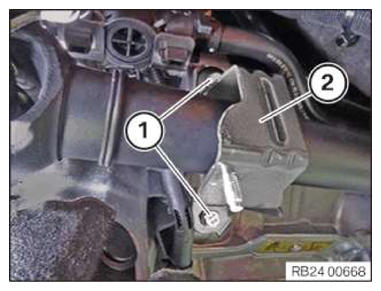

- Loosen screw (1).
- Feed out transmission oil lines (2) and put to one side.
- Catch and dispose of escaping transmission oil.

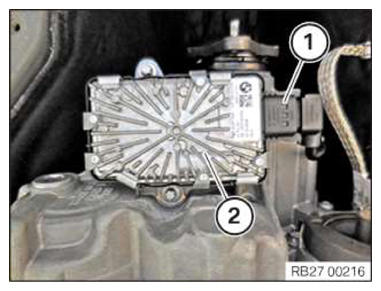

- Disconnect connector (1) from transfer box control unit (longitudinal torque distribution) (2).
- Release positive battery cable (2) from clamps (1).
- Put the positive battery cable (2) to one side.

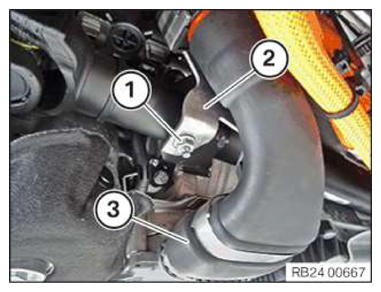

- Loosen nut (1).
- Loosen screw (2).
- Loosen screws (3).
- Remove holder (4).

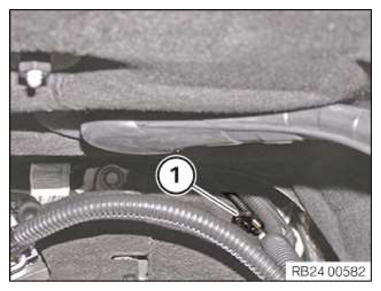

- Detach connectors (1).

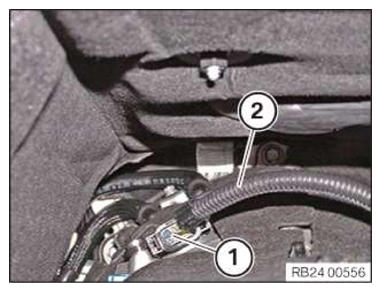

- Loosen screw (1).
- Remove connector (2).

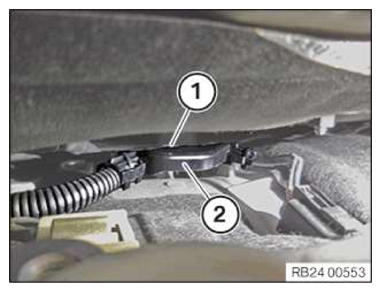

- Detach connectors (1).
- Put the cable (2) to one side.

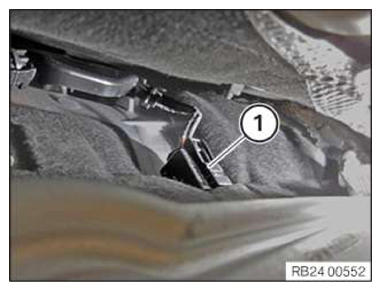

- Detach connectors (1).

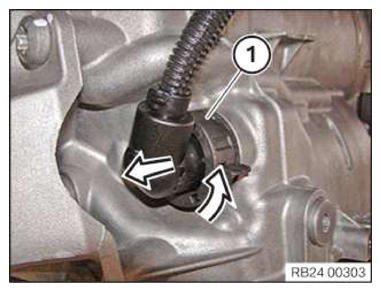

- Unlock connector (1) by turning and detach.
- Do not touch pins.

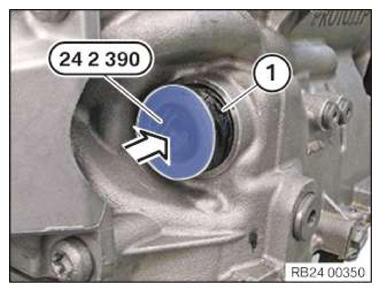

- Insert special tool 0 494 213 (24 2 390)
in sealing sleeve (1).NOTE: TECHNICAL INFORMATION
Observe the additional information for unlocking and disconnecting various plug connections in electrical and hybrid vehicles! - Loosen screws (1).
- Guide out the high-voltage connector (2).

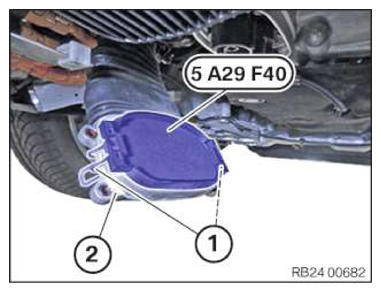

- Close high-voltage connector (2) using special tool 5 A29 F40.
- Lock clamps (1).
- Release nut (1).
- Guide out the bracket (2) and set it aside along with the high-voltage connector (3).
- Loosen screws (1).
- Guide out and remove holder (2).

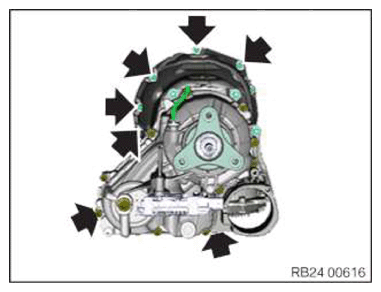

- Remove screws (arrows).
- Secure the front prop shaft on the transmission with a belt.

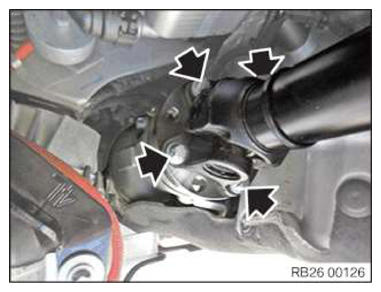

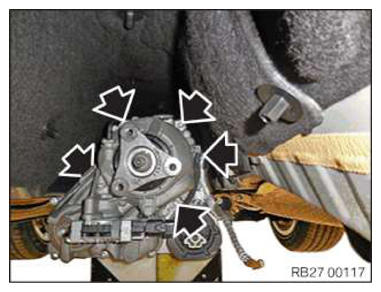

- Unscrew the screw connection (arrows) of the transfer box.
- Carefully remove the transfer box with the front propeller shaft.
It is imperative to prevent damage to the surface coating!

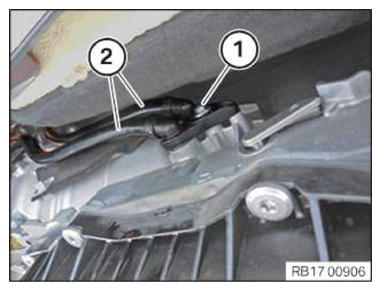

- Loosen screw (1).
- Feed out transmission oil lines (2) and put to one side.
- Catch and dispose of escaping transmission oil.
- Remove remaining bolts (arrows).
