Releasing the swivel bearing from the spring strut

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

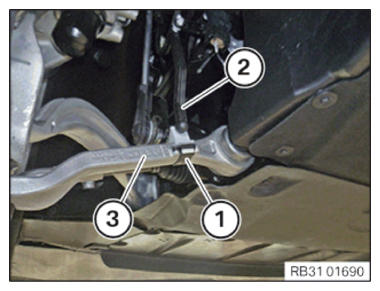

Unlock the holder (1) of attachment rod (2) for the ride height sensor and release from the wishbone (3).

Courtesy of BMW OF NORTH AMERICA, INC.

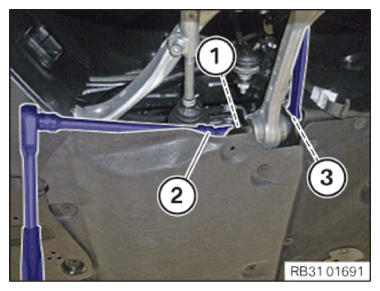

Slacken the screw (1) using the standard tool (2). In doing so, counter support at the nut (3).
Standard tool: Pivoting extension 1/2 inch

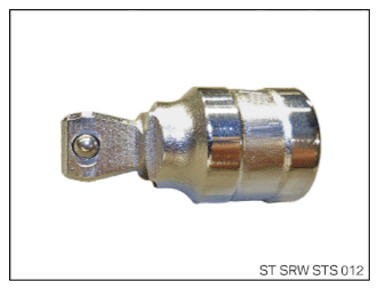

Swivel extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch

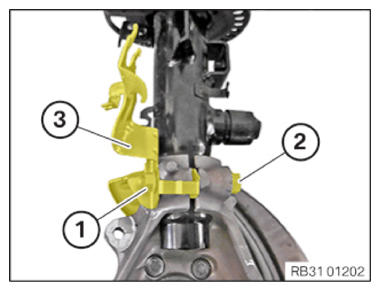

Release nut (1).
Pull out screw (2).
Remove the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

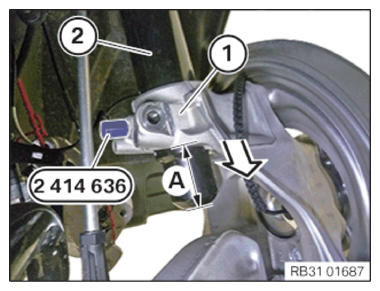

Spread the swivel bearing (1) with the special tool 2 414 636 .
Pull down the swivel bearing (1) in arrow direction from the spring strut (2) until dimension (A) is reached.
Dimension (A) = 1 cm

Courtesy of BMW OF NORTH AMERICA, INC.
