Prepare the spring tensioner

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of the coil spring .
Any use of faulty protective inserts leads to coil spring damage. Faulty protective inserts may lead to a cracked coil spring (corrosion) .

Check the protective insert for wear or damage and if necessary, replace the protective inserts.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Variant A with Basis and Plug-in Hybrid Electric Vehicle

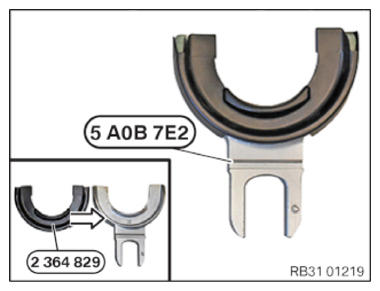

Mount the special tool 2 364 829 on the special

tool AOB 7E2 .

Prepare special tool 5 AOB 7E2 2 x and always use with the protective insert!

Courtesy of BMW OF NORTH AMERICA, INC.
Variant B with Sport and BMW M Performance Automobile
Mount the special tool 2 213 040 (31 3 364) on the special tool 2 213 039 (31 3 382) .

Prepare special tool 2 213 039 (31 3 382) 2 x and always use with the protective insert!

Courtesy of BMW OF NORTH AMERICA, INC.

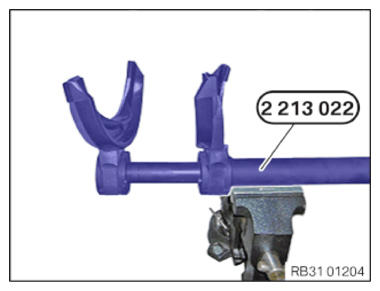

Clamp the special tool 2 213 022 (31 3 340) in the vice.
Hook the pressure plates of version A or B from the top on to the special tool 2 213 022 (31 3 340) until you can feel and hear the retaining bolts engage audibly.
Check the position of the pressure plates, correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

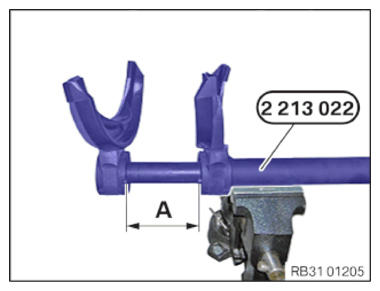

Adjust the special tool 2 213 022 (31 3 340) to matching dimension (A).
- Basis and Plug-in Hybrid Electric Vehicle: Dimension (A) = 120 - 130 mm
- Sport and BMW M Performance Automobile: Dimension (A) = 90-95 mm
Courtesy of BMW OF NORTH AMERICA, INC.
