Measuring the ride height of the front axle and adjusting the normal position

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on the wheels (e.g. workshop pit or vehicle lift for Kinematics Diagnosis System).

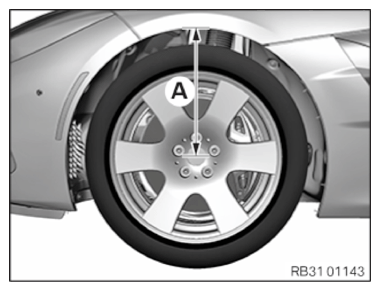

Measure the ride height (A).

Load or unload the vehicle until the ride height (A) is within the tolerance.

TECHNICAL DATA DESCRIPTION

G20/G21/G28 rear-wheel drive, standard suspension
Measured from center of wheel hub to lower edge of wheel well	Dimension A 371+10-10 mm

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA DESCRIPTION

G20 Rear wheel drive, sport suspension settings with low-slung
Measured from center of wheel hub to lower edge of wheel well	Dimension A 360+10-10 mm
