Lower the rear exhaust system

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

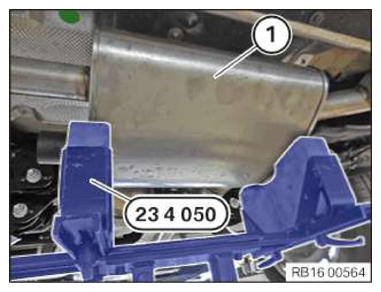

Support rear silencer (1) with the transmission jack and special tool 0 495 498 (23 4 050) .

Courtesy of BMW OF NORTH AMERICA, INC.

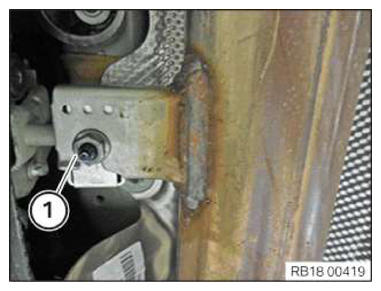

Loosen nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

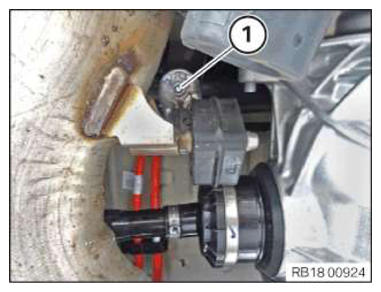

Release the nut (1) on the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

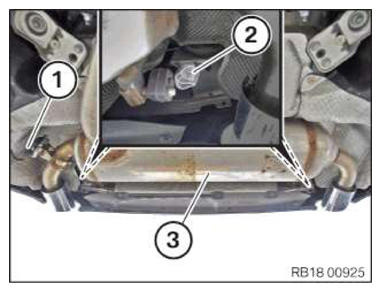

Unlock plug connection (1) and disconnect.
Loosen nuts (2).
Lower the exhaust system (3).

Courtesy of BMW OF NORTH AMERICA, INC.
