Lifting the rear axle differential

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

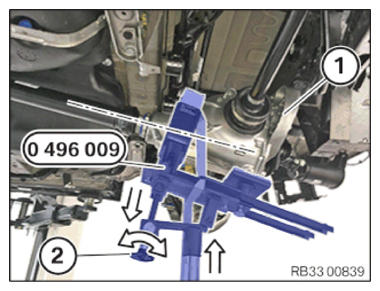

Lift and position the rear axle differential (1) with the special tool 0 496 009 (33 5 200) .
While lifting the rear axle differential (1) correct the installation position by twisting the adjustment screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

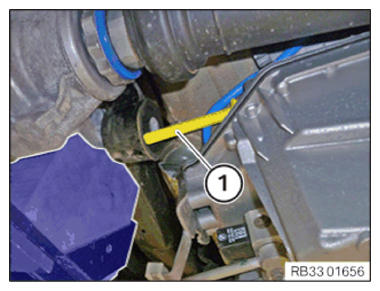

Insert screw from the rear.
Replace nut (1).
Parts: Nut
Screw nut (1) onto the screw with a few turns.
Replace screws (1).
Parts: Screws

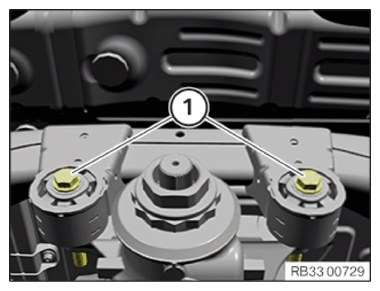

Screw in the screws (1) by hand.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, front
M12 Replace screw.	Tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

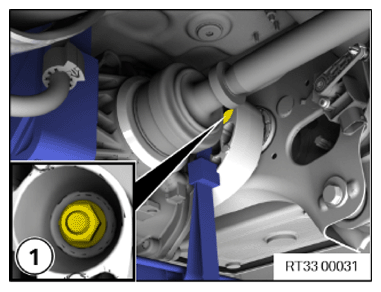

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, rear
M14 Replace nut.	Tightening torque .	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

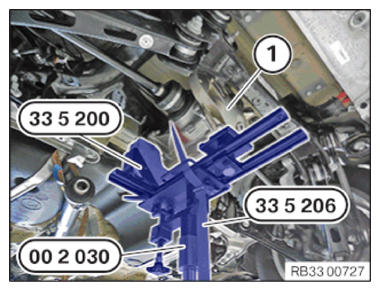

Loosen and remove the tensioning strap 0 496 080 (33 5 206) from the rear axle differential (1).
Lower and remove the special tools 0 490 133 (00 2 030) and 0 496 009 (33 5 200) .

Courtesy of BMW OF NORTH AMERICA, INC.

installing vibration absorber

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

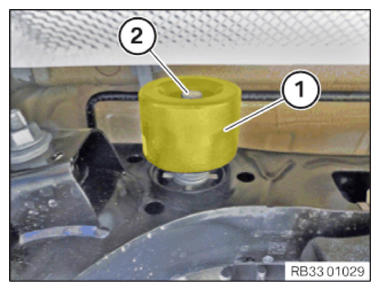

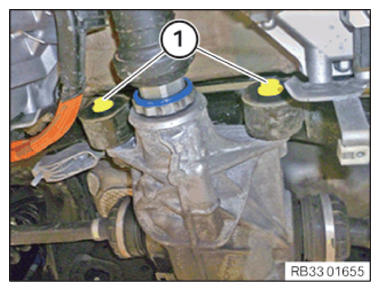

Position the vibration absorber (1).
Replace the screw (2).
Parts: Screw

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATION

Vlbration absorber at rear axle
M8 Replace screw.	Tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Vibration absorber at rear axle
M10 Replace screw.	Joining torque	56 Nm
	Angle of rotation	90°

Lift the rear axle differential (1) with the special tools 0 496 009 (33 5 200) and 0 490 133 (00 2 030) and position it on the rear axle support.
Make sure that the special tool 0 496 080 (33 5 206) does not get pinched between the rear axle differential and the dust plate.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert screw from the rear.
Replace nut (1).
Parts: Nut

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1).
Parts: Screws
Screw in the screws (1) by hand.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, front
M12 Replace screw.	Tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, rear
M14 Replace nut.	Tightening torque .	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the special tool 0 496 080 (33 5 206) from the rear axle differential (1) and remove it.
Lower the special tools 0 490 133 (00 2 030) and 0 496 009 (33 5 200) and set them aside.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

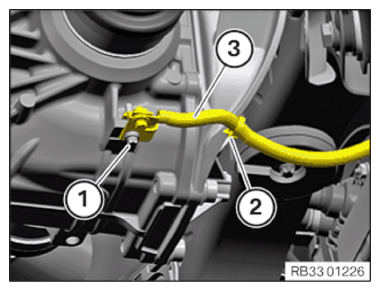

Fasten the ground cable (3) to the rear axle differential using the holder (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Ground cable to rear axle differential
M6	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Lift and position the rear axle differential (1) with the special tool 0 496 009 (33 5 200) .

While lifting the rear axle differential (1) correct the installation position by twisting the adjustment screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw from the rear.
Replace nut (1).
Parts: Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.
Replace the screw (1).
Parts: Screw
Guide in screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Pilot the screws (1) by hand and tighten.

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, front
M12 Replace screw.	Tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, rear
M14 Replace nut.	Tightening torque .	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the special tool 0 496 080 (33 5 206) from the rear axle differential (1) and remove it.
Lower the special tools 0 490 133 (00 2 030) and 0 496 009 (33 5 200) and set them aside.
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
Fasten the ground cable (3) to the rear axle differential using the holder (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Ground cable to rear axle differential
M6	Tightening torque	12 Nm
