Installing transmission cross member
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

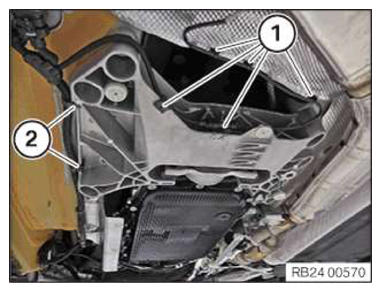

- Install transmission cross-member.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION
Transmission cross member to rubber mounts M12 tightening torque 68 Nm - Tighten down screws (2).TIGHTENING TORQUE SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Remove the transmission jack.

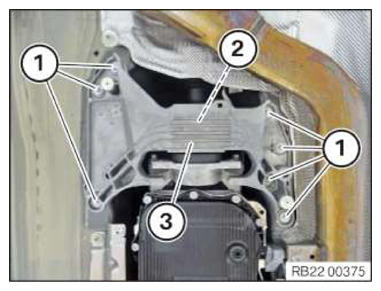

- Install the transmission cross member (3).
- Insert the screw (2) and apply hand-tight.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Tighten down screw (2).TIGHTENING TORQUE SPECIFICATION
Transmission cross member to rubber mounts M12 tightening torque 100 Nm - Only B47 and B57:
Install the cable.
Fasten the cable with clamps (1) and (2).

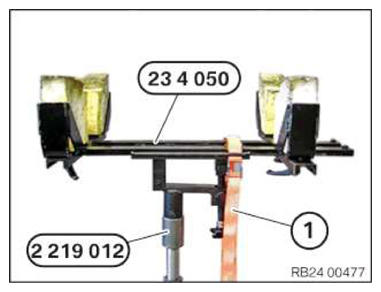

- Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050)
and 2 219 012
from the transmission.

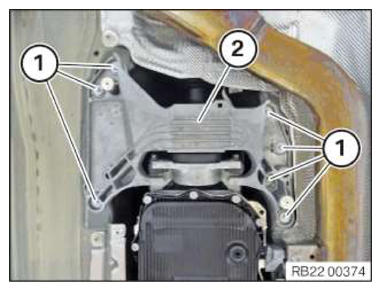

- Install the transmission cross member (2).
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050)
and 2 219 012
from the transmission.

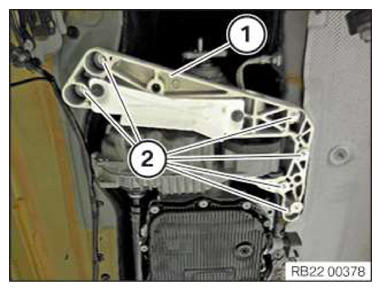

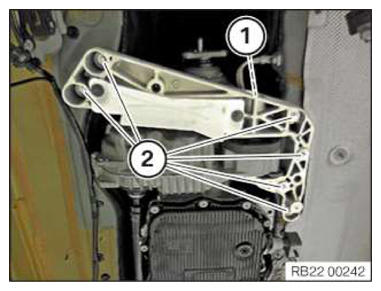

- Install the transmission cross member (1).
- Tighten down screws (2).TIGHTENING TORQUE SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050)
and 2 219 012
from the transmission.
