Installing the transmission oil pan (GA8HP50Z, GA8HP51Z, GA8HP75Z, GA8HP76Z)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
The transmission oil pan and seal must be replaced each time after loosening.

Clean the contact surface of the transmission oil pan on the transmission.
Replace screws (1) to (13).
Parts: Screws
Position the transmission oil pan.
Hand-tighten the bolts.

Tighten the screws In order from (1) to (13).

TIGHTENING TORQUE SPECIFICATION

Transmission oil pan
M6 Replace screws.	tightening torque 10 Nm

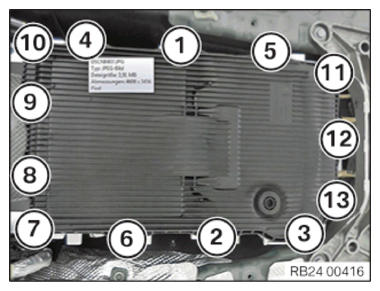

Fig 1: Transmission Oil Pan Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

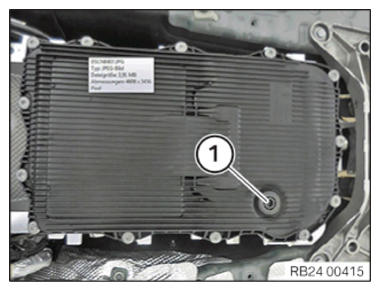

If necessary, tighten the oil drain plug (1).

TIGHTENING TORQUE SPECIFICATION

Oil drain plug
M18 Replace screw.	tightening torque 8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
