Installing the rear brake disc

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion if necessary.
Irregularities in the contact surface can cause distortion in the brake disc!

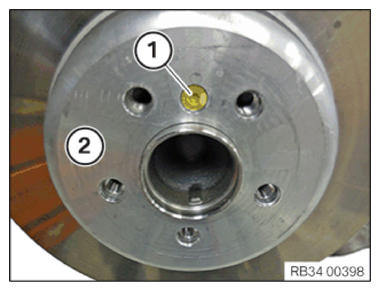

Position the brake disc (2).
Replace the screw (1).
Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Brake disc to rear wheel hub
M8 Replace screw.	Tightening torque	16 Nm
