Installing the oil deflector

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

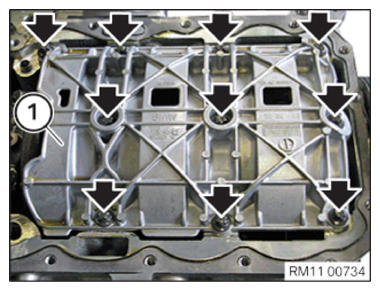

Install the oil deflector (1).
Replace the screws (arrows).
Parts: Screws

Tighten all the screws (arrows) crosswise.

TIGHTENING TORQUE SPECIFICATION

Oil deflector to crankcase
M8 x 35	Replace screws .	15 Nm 45°

Courtesy of BMW OF NORTH AMERICA, INC.

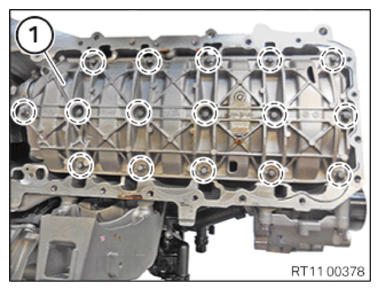

Replace screws (marks).
Parts: Screws
Guide in and position the oil deflector (1).

Tighten screws (marks) in crosswise sequence using the special tool 0 490 504 (00 9 120) .

TIGHTENING TORQUE SPECIFICATION

Oil deflector to crankcase
M8 x 35 Replace screws.	Joining torque Angle of rotation	15 Nm 45°

Courtesy of BMW OF NORTH AMERICA, INC.
