Installing the engine on the assembly stand
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
- Variant with rear wheel drive:

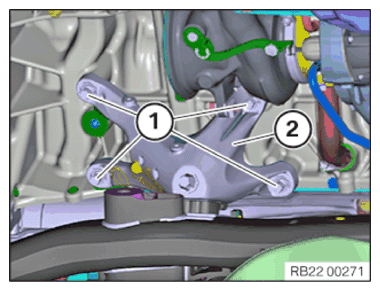

Loosen screws (1).
Remove the engine support bracket (2).
- Variant with all-wheel drive:

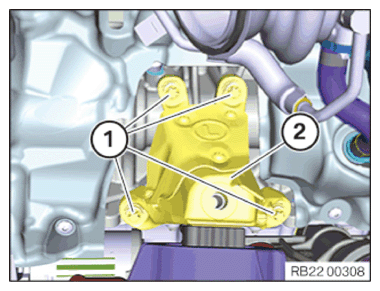

Loosen screws (1).
Remove the engine support bracket (2).

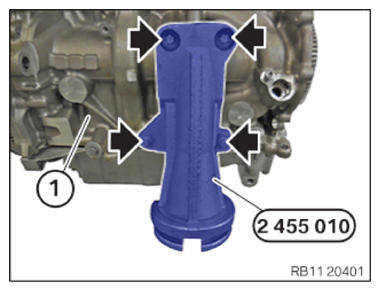

- Position the special tool 2 455 010 on the engine (1).
- Position and tighten the screws (arrows).TIGHTENING TORQUE SPECIFICATION

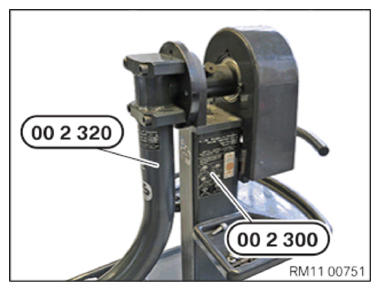

Special tool 2 455 010 to crankcase M10x30 Tightening torque 38 Nm - Position the assembly jig 0 495 187 (00 2 300)

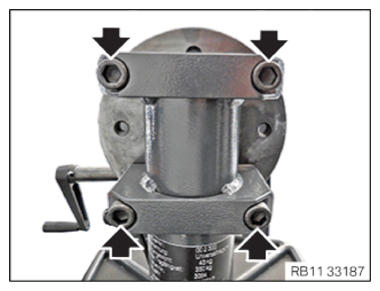

with the special tool 0 495 196 (00 2 320)
.
- Tighten the screws (arrows).TIGHTENING TORQUE SPECIFICATION

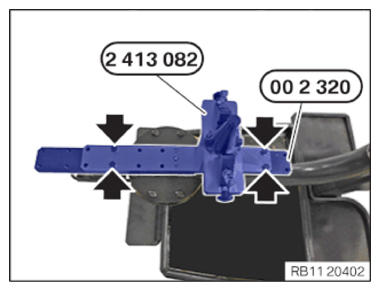

Special tool 00 2 320 to special tool 00 2 300 M14X95 Tightening torque 130 Nm - Screw special tool 2 413 082 together with special tool 0 495 196 (00 2 320) .
- Tighten the screws (arrows).TIGHTENING TORQUE SPECIFICATION

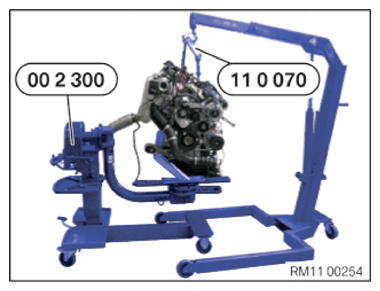

Special tool 2 413 082 to special tool 00 2 320 M12x65 Tightening torque 100 Nm - Position the workshop crane with the special tool 0 490 579 (11 0 070)
and the engine on the special tool 0 495 187 (00 2 300)
.
- Detach the holder (2) in the direction of the arrow.

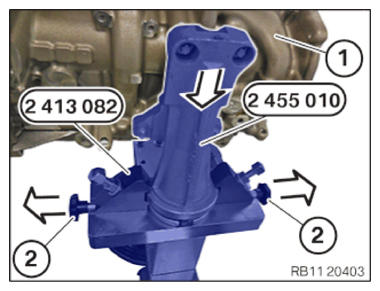

- Position the engine (1) with the special tool 2 455 010 in the direction of the arrow on the special tool 2 413 082 .

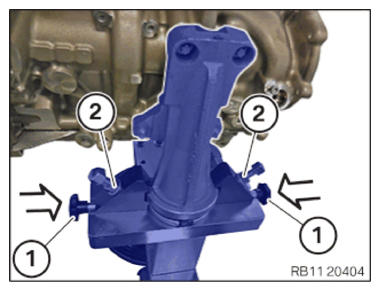

- Lock the holder (1) in the direction of the arrow.
- Tighten nuts (2).
