Installing the automatic transmission (GA8HP51Z)

Checking installation position of torque converter

Courtesy of BMW OF NORTH AMERICA, INC.

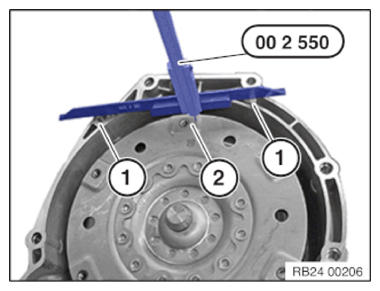

• Check the installation dimension between the contact surfaces (1) and the outer edge (2) of the threaded hole of the torque converter with the special tool 0 490 189 (00 2 550) .

  See repair instructions

  • Removing and installing/replacing torque converter
  NOTE: RISK OF DAMAGE
  Damage of the flywheel and automatic transmission  .
  A non-horizontal fit during the removal and installation of the automatic transmission can lead to damage on the automatic transmission or flywheel  .

  • Align the automatic transmission completely horizontal to the engine during the removal and installation.
  • Check for correct alignment before tightening the transmission bolts.

  Courtesy of BMW OF NORTH AMERICA, INC.

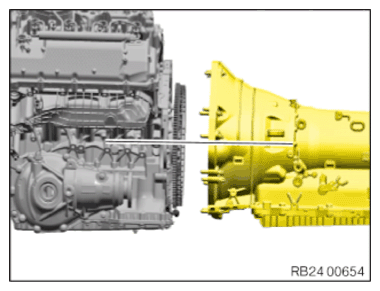

• Before installing the automatic transmission, align it horizontally to the engine.

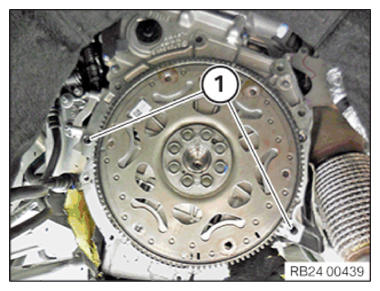

• Check fitting sleeves (1) for damage and, if necessary, replace them.
• Check the correct fit of fitting sleeves (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

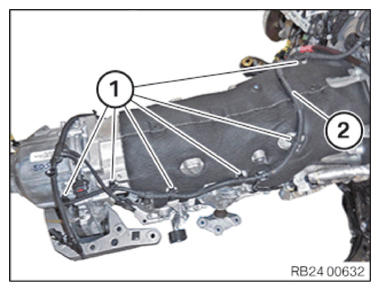

• Install the line (2).
• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

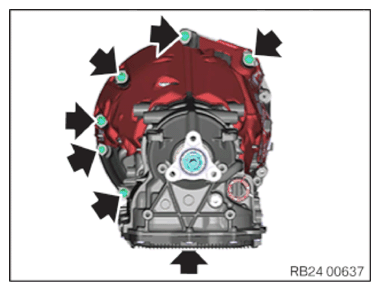

• Transmission flange-mount.
• Turn the torque converter until the bore of the torque converter is aligned with the bore of the drive plate.
• Fit the transmission bolts (arrows) and apply hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

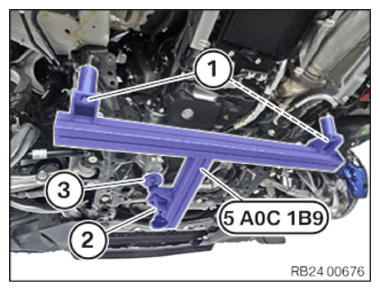

• Turn the knurled screw (2) until the plate (3) is no longer in contact.
• Release screws (1) and remove the special tool 5 AOC 1B9.

  Courtesy of BMW OF NORTH AMERICA, INC.

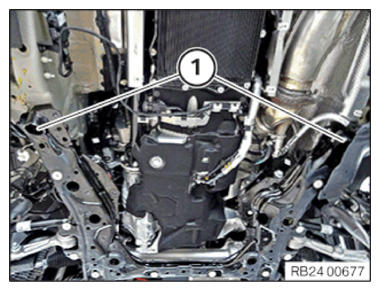

• Replace screws (1).

  Parts:  Screws

• Tighten the screws (1) on the front axle support.
  TIGHTENING TORQUE SPECIFICATION



  Front axle carrier to body, rear
  M14 Replace screws.	tightening torque	175 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

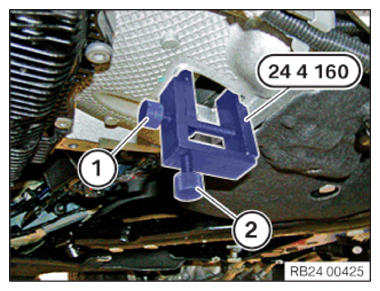

• Release screws (1) and (2).
• Remove the special tool 0 494 451 (24 4 160) .

  Courtesy of BMW OF NORTH AMERICA, INC.

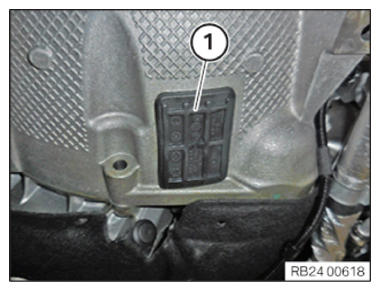

• Install the sealing cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws.

  Parts:  Screws

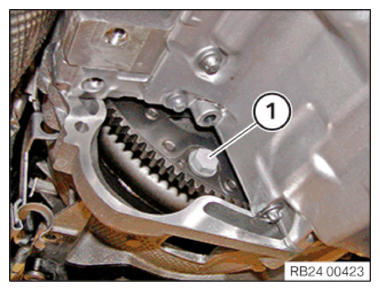

• Turn the engine In the direction of rotation using special tool 0 493 380 (11 6 480) on the vibration damper to tighten all 6 screws (1).
• Tighten all 6 screws (1) of the torque converter using special tool 0 491 667 (24 1 110) .
  TIGHTENING TORQUE SPECIFICATION



  Torque converter to flywheel
  M10 Replace screws.	tightening torque	56 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

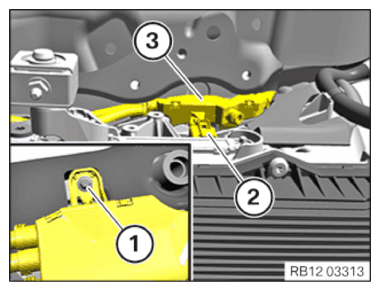

• Feed in and install the wiring harness section (3) of the transmission wiring harness.
• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Grounding cable/wiring harness section to transmission
  BM6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

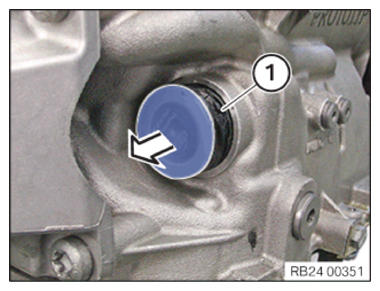

• Remove the special tool 0 494 213 (24 2 390) from the sealing sleeve in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Notes on mechatronics are a fundamental requirement for these repair instructions and must be complied with at all times.
  (GA8H P50Z/GA8H P51Z/GA8H P75Z/GA8H)

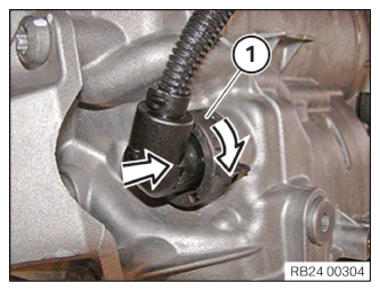

• Slide connector (1) in the arrow direction and lock it by turning it.

  Courtesy of BMW OF NORTH AMERICA, INC.

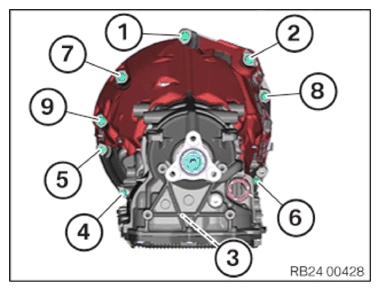

• Tighten the transmission bolts in the sequence (1) to (9).
  TIGHTENING TORQUE SPECIFICATION



  Transmission to engine
  M8	Tightening torque	19 Nm
  M12	Tightening torque	66 Nm

  Fig 1: Transmission Bolts Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

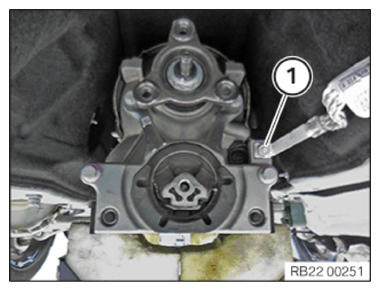

• Install the ground strap.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Ground strap to transmission or body
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
