Installing rear exhaust system
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Component with heavyweight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

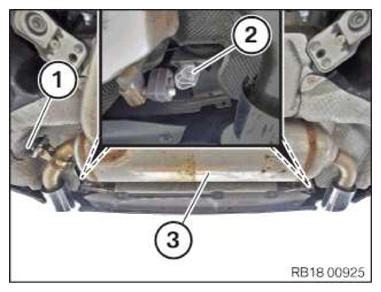

- Guide in and install exhaust system (3).
- Replace nuts (2).
Parts: Nuts
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATION
Rear silencer to body/bumper support M8 Replace nuts. Tightening torque 19 Nm NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Connect connectors (1) and lock.
The connector (1) must engage audibly.

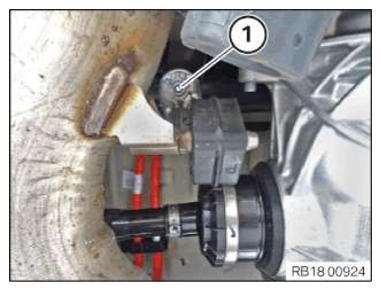

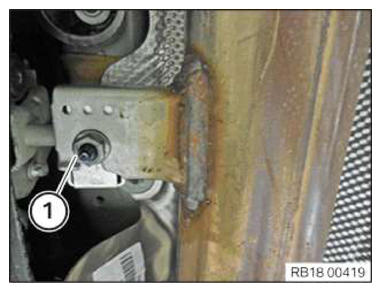

- Replace nut (1).
Parts: Nut
- Tighten the bolt (1) on the rear axle support.TIGHTENING TORQUE SPECIFICATION
Rear silencer on support Nut M8 Replace nut. tightening torque 19 Nm - Replace nut (1).
Parts: Nut
- Tighten nut (1).TIGHTENING TORQUE SPECIFICATION

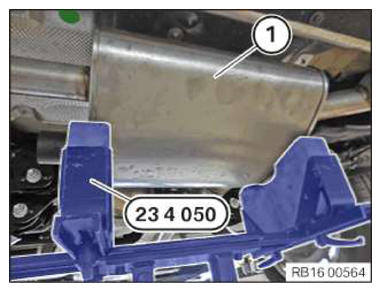

Front pipe/front silencer/gasoline particulate filter to the transmission holder M8 Replace nut. tightening torque 19 Nm - Remove the transmission jack and the special tool 0 495 498 (23 4 050)
from the rear silencer (1).
