Installing bellows for the left and right steering gear

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

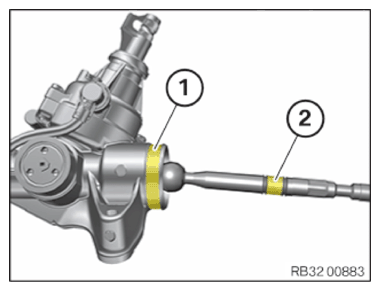

Grease the electromechanical steering gear and the tie rod in areas (1) and (2).
CONSUMABLE DESCRIPTION

Lubricating grease FB-1 100 g, Tube 83 23 2 208 093

Courtesy of BMW OF NORTH AMERICA, INC.

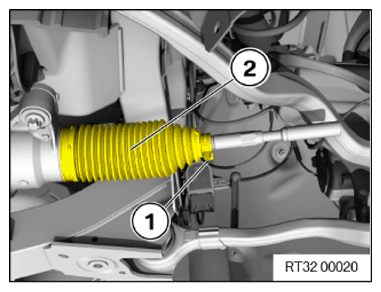

Check the bellows (2), replace if necessary.
Push up the bellow (2) and position.
Fasten the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the ear hose clamp (1).
Parts: Ear hose clamp
Position the ear hose clamp (1).

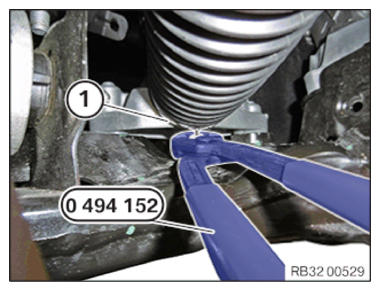

Attach the hook fastener of the ear hose clamp (1) and press the ear hose clamp using special tool 0 494 152 (32 1 260) .

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA DESCRIPTION

Ear hose clamp gap dimension
Courtesy of BMW OF NORTH AMERICA, INC.	Dimension [A]	max. 1 mm
