Install the front output shafts (on the mobile lifting table)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
It is essential to replace the circlip of the output shaft.
It is essential to replace the circlip of the output shaft.
NOTE:
TECHNICAL INFORMATION
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
- Check the gearing of the output shaft for damage and replace damaged parts if necessary.
- Check the bellows for damage and replace damaged parts as needed.

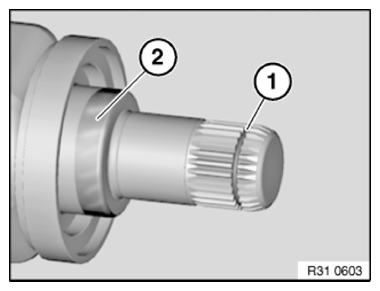

- Replace the circlip (1).
Parts: Circlip
- Coat the contact surfaces (2) using approved rear differential fluid.NOTE: The figure shows the procedure for the front axle differential. The procedure for the bearing bracket is identical.

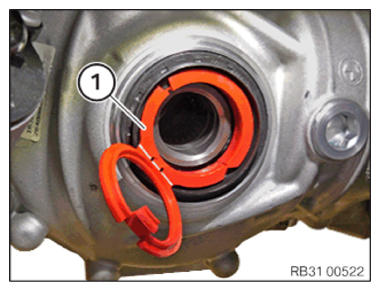

- Fold open the assembly protection ring (1).

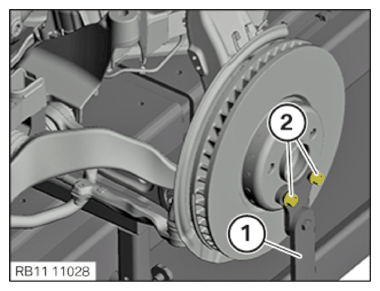

- Loosen screws (2).
- Remove the swivel bearing mount (1) and set it aside.
- Suspend the swivel bearing from the workshop crane 2 220 718
.

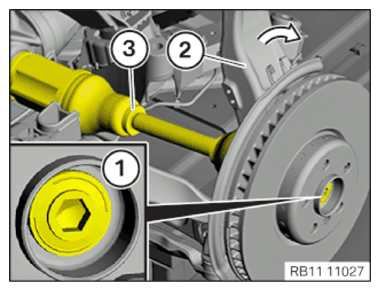

- Tilt the swivel bearing (2) slightly forward in the arrow direction.
- Insert the output shaft (3) into the front axle differential all the way to the stop until you feel the output shaft snap-in.
- Tighten screw (1) with the special tool 0 490 504 (00 9 120)
.TIGHTENING TORQUE SPECIFICATION

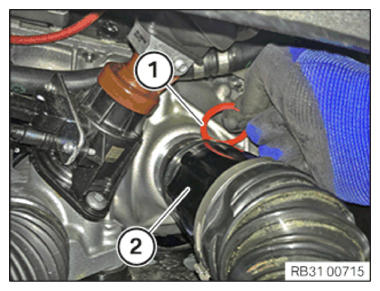

Output shaft to wheel bearing M16 Replace collar screw and spring. Joining torque 210 Nm Angle of rotation 90° - Pull on the tab of the installation protection ring (1) until one of the two predetermined breaking points breaks.
- Pull out and dispose of the installation protection ring (1).
- Push the output shaft (2) up to the stop in the front axle differential or the bearing bracket.
The output shaft (2) must snap in noticeably and audibly.

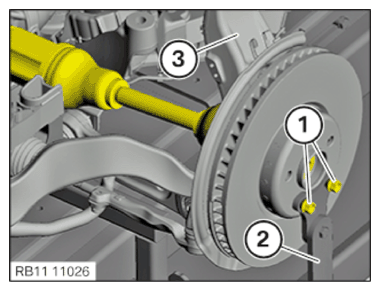

- Install the stand (2) of the swivel bearing (3).
- Tighten down screws (1).

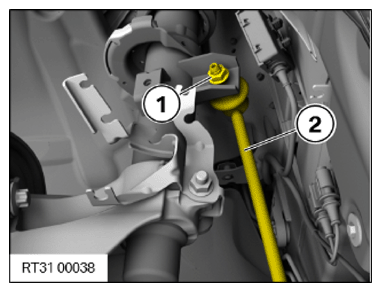

- Position the anti-roll bar link (2) on the spring strut.
- Replace nut (1).
Parts: Nut
- Tighten the nut (1), if necessary, counter support the Torx socket.TIGHTENING TORQUE SPECIFICATION
Front anti-roll bar link to anti-roll bar/spring strut M10 Replace nut. Tightening torque 56 Nm
