Install the exhaust bracket

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

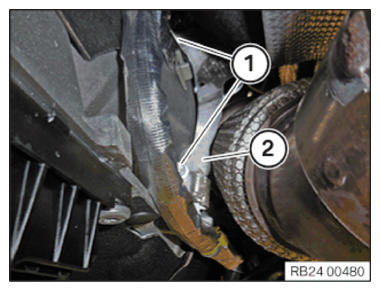

Install the exhaust bracket (2).

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

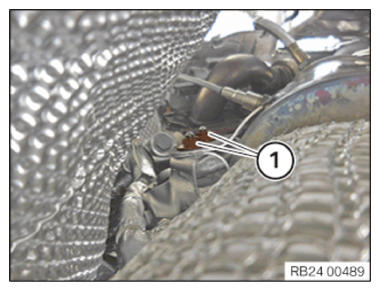

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Nut Replace nut.	Tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

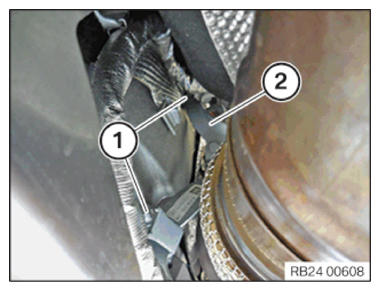

Install the exhaust bracket (2).

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Transmission to engine
M8	Tightening torque 19 Nm
M12	Tightening torque 66 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

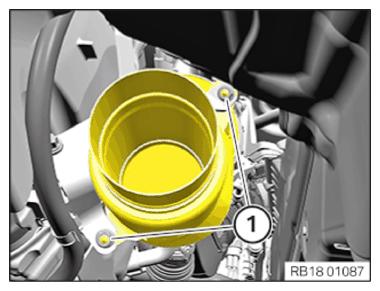

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Replace screw.	Tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

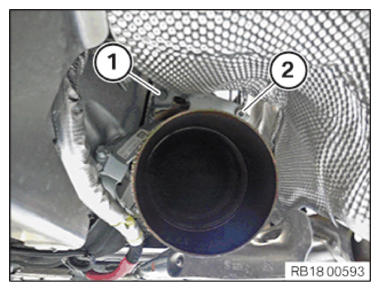

Tighten nut (2).

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Replace nut.	Tightening torque 19 Nm

Version B:

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Replace nut.	Tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
