Connecting the coolant lines
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

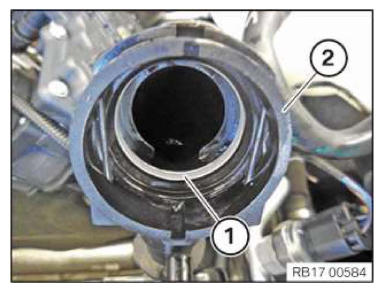

- Check the sealing rings (1)
of the coolant lines (2)
for damage and replace them if necessary.
- Connect and lock coolant line (1)
.
The coolant line (1) must audibly engage.
- Connect and lock coolant line (1)
.
The coolant line (1) must audibly engage.
Follow-up work
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to IF INSTALLED: INSTALL UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
