Attaching the brake caliper on the left and right
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.
Securing the brake caliper

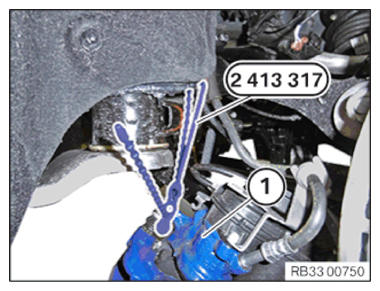

- Release and remove special tool 2 413 317
.
The brake caliper must not hang on the brake hose.

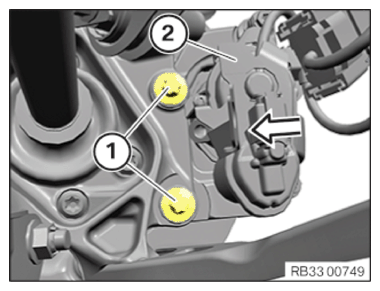

- Position the brake caliper (2) in the arrow direction.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION

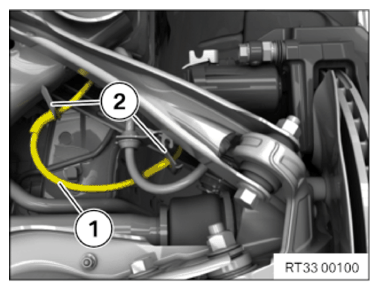

Brake anchor plate to rear wheel carrier M12 Replace screw. Tightening torque 130 Nm - Attach the cable for the parking brake (1) to the holders (2).NOTE: Only perform the operation on the right side.
- Attach the cable for the brake pad wear indicator to the rear axle support.
