For replacement: Rear module bracket
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE WINDOW CHANNEL STRIP FROM THE REAR DOOR .
- Refer to REMOVE REAR DOOR TRIM .
- Refer to REMOVE THE MODULE BRACKET REARWARD .

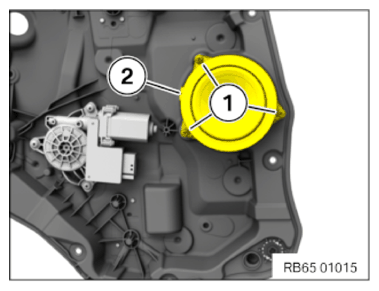

- Release the screws (1)
and remove the loudspeaker (2)
.

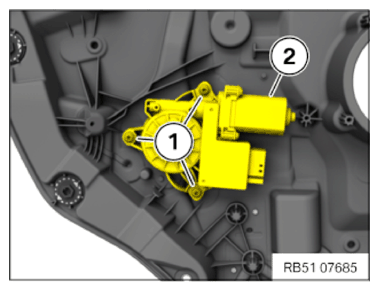

- Release screws (1)
and remove the drive for the rear power window motor (2)
.
- Position the drive for the rear power window module (2) at the new rear module bracket.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Flat motor to module bracket in door | ||
|---|---|---|
| Oval-head screw for thermoplastic | Tightening torque | 3.5 Nm |
- Position the loudspeaker (2) at the rear module bracket and tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Loudspeaker in door to module bracket in door | ||
|---|---|---|
| Oval-head screw for thermoplastic | Tightening torque | 2 Nm |
Follow-up work
- Refer to INSTALLING THE REAR MODULE BRACKET .
- Refer to INSTALLING THE REAR DOOR TRIM PANEL .
- Refer to INSTALL WINDOW CHANNEL STRIP ON THE REAR DOOR .
