Replacing the exhaust turbocharger, left

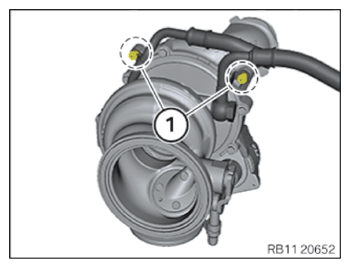

- Loosen screws (1)
.

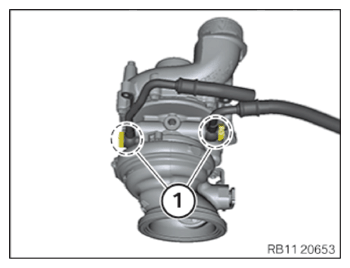

- Loosen screws (1) .
- Remove the lines (1) .
- Replace the left exhaust turbocharger.
Parts: Exhaust turbocharger
- Position the lines (1) on the exhaust turbocharger.
- Replace sealing rings.
Parts: Sealing ring
- Position screws (1) with sealing rings on the lines.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Coolant lines on exhaust turbocharger | ||
|---|---|---|
| Screw M14x1.5 | Tightening torque | 15 Nm |
| Angle of rotation | 75° | |
