Installing the crankshaft sensor

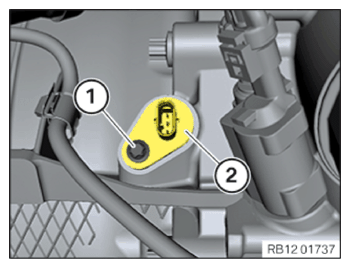

- Position crankshaft sensor (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Crankshaft sensor | ||
|---|---|---|
| M6x16 screw | Tightening torque | 8 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| heat shield | ||
|---|---|---|
| M6x16 screw | Tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING THE STIFFENING PLATE .
