Fastening the left and right tension strut on the wheel guide joint
NOTE:
Perform the steps on the right and left side.

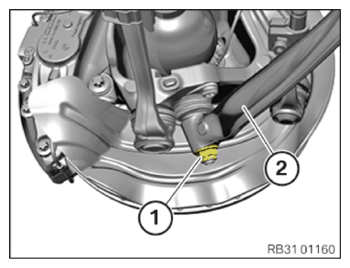

Attaching the tension strut to the wheel guide joint
- Position the tension strut (2) on the wheel guide joint.
- Replace nut (1).
Parts: Nut
- Tighten nut (1).
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Tension strut on wheel guide joint | ||
| M14 Replace nut. |
Joining torque | 60 Nm |
| Angle of rotation | 60° | |
