Removing the trim panel for the storage shelf

Precondition

Rear seat backrests are folded

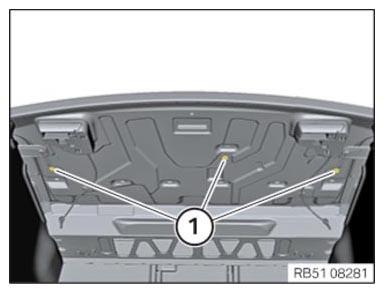

• Release the screws (1) on the roller sunblind from the cargo area.

  Courtesy of BMW OF NORTH AMERICA, INC.

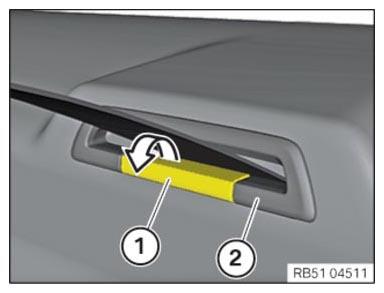

• Unclip the cover (1) in arrow direction.
• Feed out the seat belt finisher strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

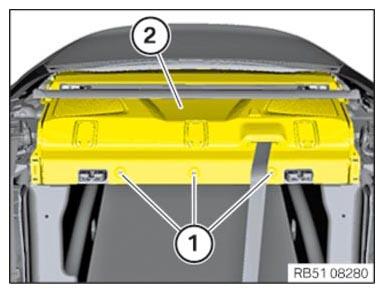

• Loosen the expanding rivet (1).
• Lift the trim panel for the rear shelf (2) slightly and disconnect the plug connection on the right side (for the roller sunblind).
• Feed the trim panel for the rear shelf (2) together with the roller sunblind, out of the guides at the rear and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
