Install the right water channel cover

Installing the cover for the water channel

Check

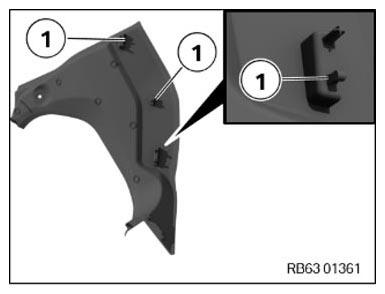

• Check all the detents (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (1) are damaged.

Measure

• Replace the trim for the water channel.

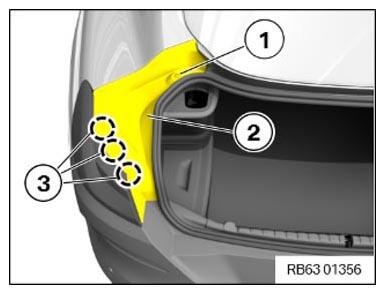

• Clip cover (2) for the water channel into detents (3).
• Clip in the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
