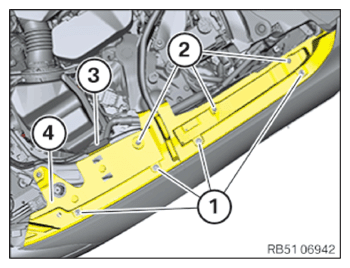

Installing the mounting for hood seal

• Feed in the mounting (4)  for hood seal and position it correctly.
• Clip in cable (3)  .
• Mount clips (2)  .
• Mount the expanding rivets (1)  .
• Install the lid of the washer fluid reservoir.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
