Removing rear wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING REAR LEFT OR RIGHT WHEEL .
NOTE:

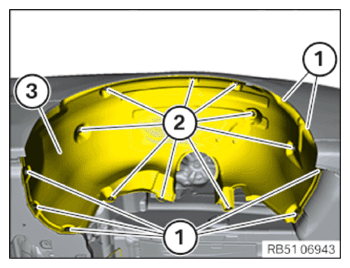

To provide a better overview: Schematic diagram with partially hidden components.
- Loosen screws (1) .
- Remove the nuts (2) and guide out the wheel arch cover to the rear (3) .
