Installing The Tail Panel

• Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.

  CONSUMABLE SPECIFICATION

  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces on vehicle and on new part with cleaning agent R1.

  CONSUMABLE SPECIFICATION

  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K5 to the bonding surfaces.

  ADHESIVE SPECIFICATION

  Body adhesive K5

  195 ml

  83195A59935

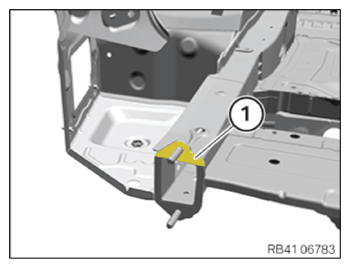

• Do not apply any adhesive in the area (1)  of the MAG welded connection.

  Courtesy of BMW OF NORTH AMERICA, INC.

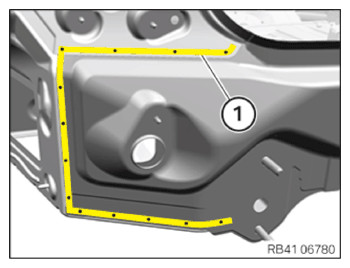

• Install the tail cowling and rivet it in the area (1)  with blind rivets N3.

  CONSUMABLE SPECIFICATION

  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

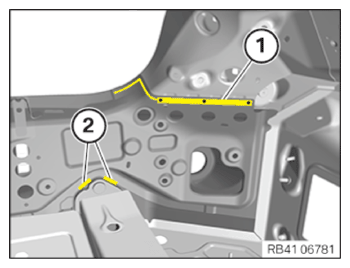

• In area (1)  , rivet the tail cowling with blind rivets N3.

  CONSUMABLE SPECIFICATION

  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

• Weld the new part in areas (2)  according to the new part preparation process.

  Courtesy of BMW OF NORTH AMERICA, INC.

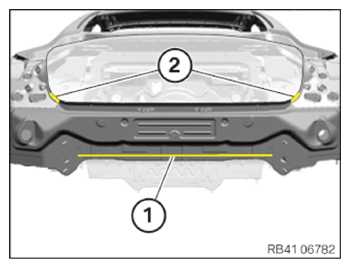

• Rivet the tail cowling in the areas (1)  and (2)  with punch rivets N5.

CONSUMABLE SPECIFICATION

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill a hole with a diameter of 4.2 mm.

  In the case of glued connections, only drill the hole after the adhesive has fully hardened.

• Screw in the EMC screw.

  CONSUMABLE SPECIFICATION

  EMC screw

  SF Plus M5x15

  83190301639

• Seal the EMC screw with the sealant.

CONSUMABLE SPECIFICATION

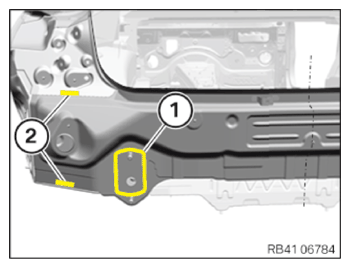

• Press in the tail cowling in area (1)  and remove the emerging adhesive.
• Before the adhesive hardens, install the support for the bumper cover.
• After the adhesive has hardened, install 2 EMC screws in the areas (2)  shown.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION
