Installing the Bowden cable for the emergency unlocking

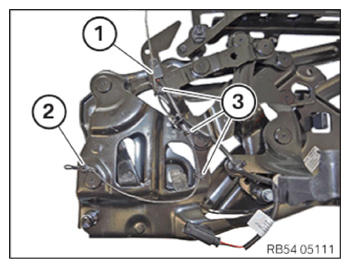

• Fasten the Bowden cable to the convertible top compartment lid mechanism (1) using a blind rivet (2).
• Thread in the Bowden cable (2) at the holders (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

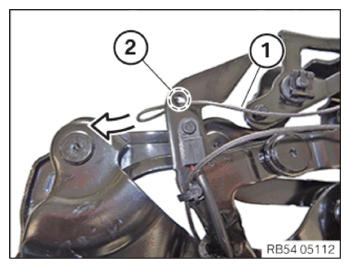

• Thread the Bowden cable (1) in arrow direction through the opening (2) at the convertible top compartment lid mechanism.

  Courtesy of BMW OF NORTH AMERICA, INC.

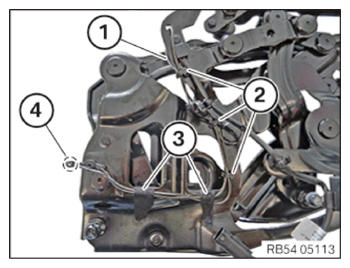

• Thread in the Bowden cable (1) at the holders (2).
• Attach the Bowden cable (1) with adhesive tape in the areas (3).
• Thread the Bowden cable (1) through the loop in the area (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CONVERTIBLE TOP COMPARTMENT LID .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
