Body Equipment -- Repair M4 (1 Of 2) (G82 & G83)
>>
51 24 Tailgate Latch, Locks
>>
51 24 130 Removing and installing/replacing striker for tailgate lock (M4 2021-2023)
>>
Remove striker for the tailgate latch
Remove striker for the tailgate latch
Preliminary work
Refer to
REMOVING TAILGATE TRIM PANEL
.

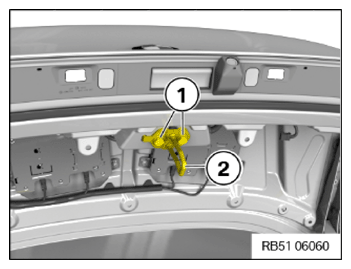

Loosen screws (1).
Remove striker for the tailgate latch (2).
Courtesy of BMW OF NORTH AMERICA, INC.
