Body Gap Dimensions REH-Hin-P-4100-G22 - V.2 (G82) (M4 2021-2023)

The dimensions stated in this service information apply at an object temperature of 20 °C.

The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

In terms of door gaps the maximum deviation between the front and rear door gap must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

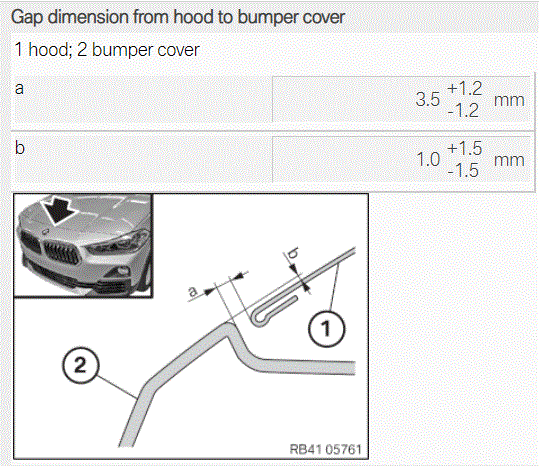

Fig 1: Hood Body Gap Dimensions And Measurement Points (G82) (1 Of 3)

G00636723

Courtesy of BMW OF NORTH AMERICA, INC.

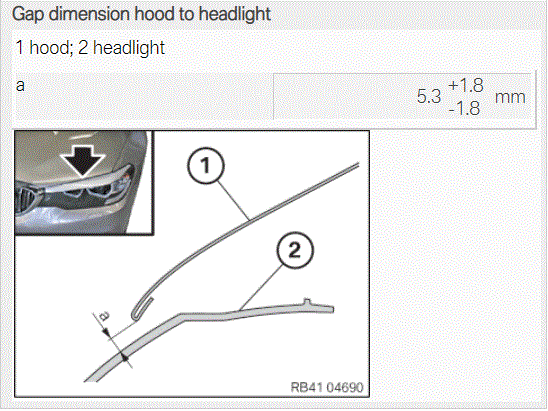

Fig 2: Hood Body Gap Dimensions And Measurement Points (G82) (2 Of 3)

G00625468

Courtesy of BMW OF NORTH AMERICA, INC.

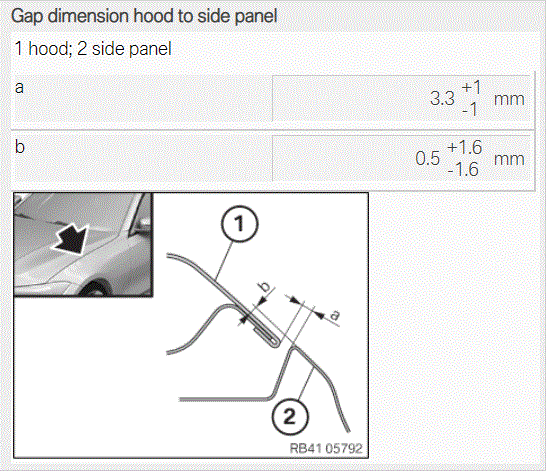

Fig 3: Hood Body Gap Dimensions And Measurement Points (G82) (3 Of 3)

G00625469

Courtesy of BMW OF NORTH AMERICA, INC.

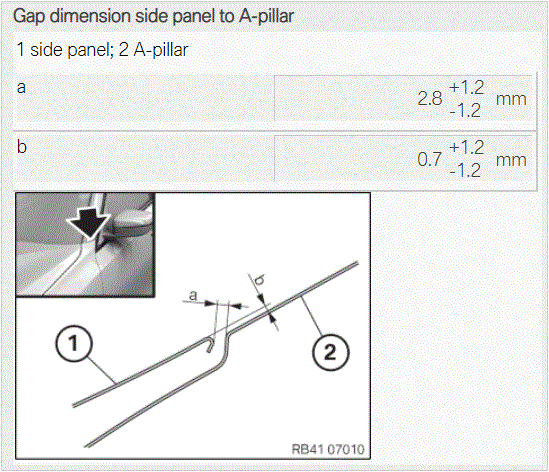

Fig 4: Front Fender And Front Pillar Body Gap Dimensions And Measurement Points (G82)

G00625470

Courtesy of BMW OF NORTH AMERICA, INC.

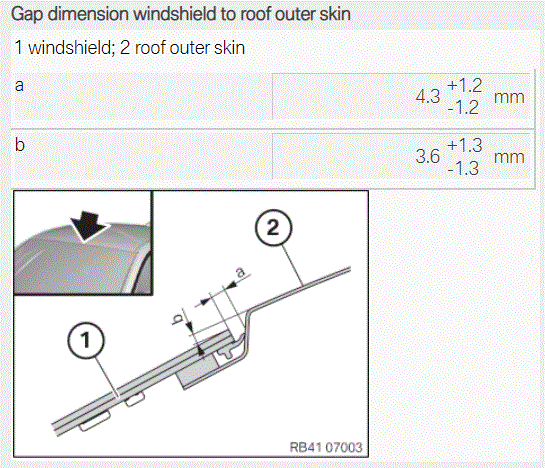

Fig 5: Windshield And Roof Panel Body Gap Dimensions And Measurement Points (G82)

G00636711

Courtesy of BMW OF NORTH AMERICA, INC.

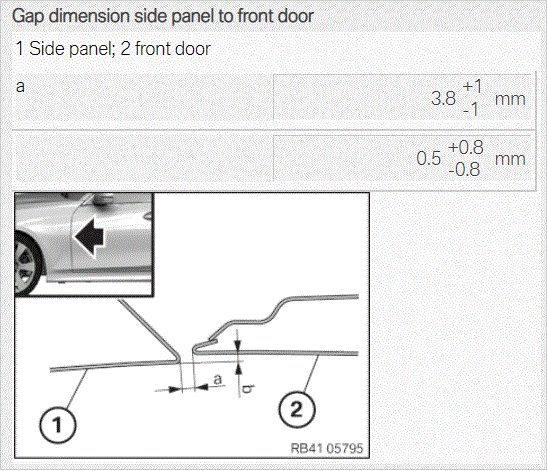

Fig 6: Front Door Body Gap Dimensions And Measurement Points (G82) (1 Of 5)

G00636712

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Front Door Body Gap Dimensions And Measurement Points (G82) (2 Of 5)

G00636713

Courtesy of BMW OF NORTH AMERICA, INC.

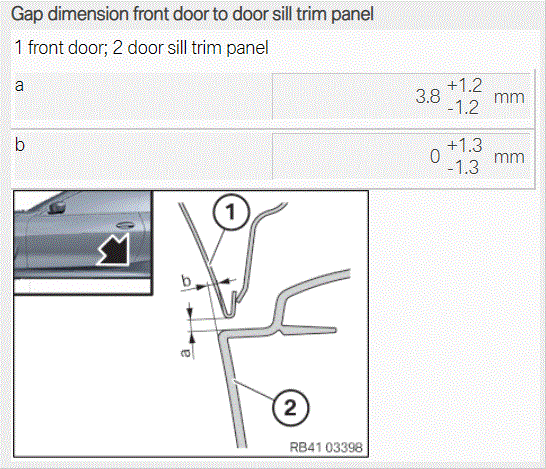

Fig 8: Front Door Body Gap Dimensions And Measurement Points (G82) (3 of 5)

G00636714

Courtesy of BMW OF NORTH AMERICA, INC.

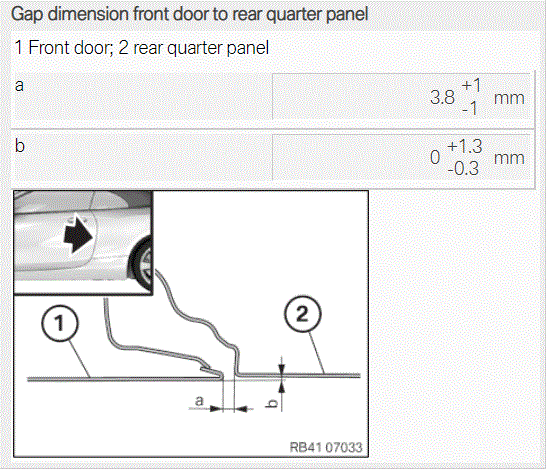

Fig 9: Front Door Body Gap Dimensions And Measurement Points (G82) (4 Of 5)

G00636715

Courtesy of BMW OF NORTH AMERICA, INC.

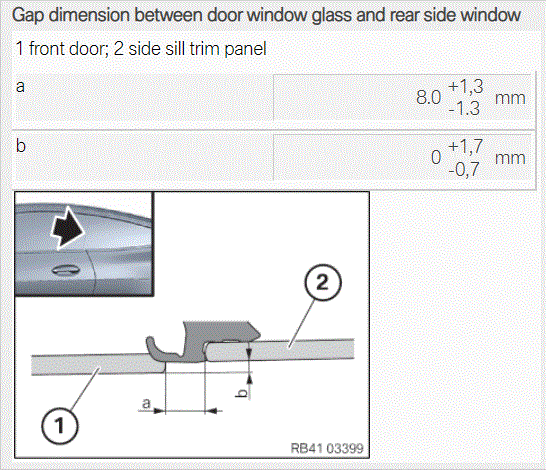

Fig 10: Front Door Body Gap Dimensions And Measurement Points (G82) (5 Of 5)

G00636716

Courtesy of BMW OF NORTH AMERICA, INC.

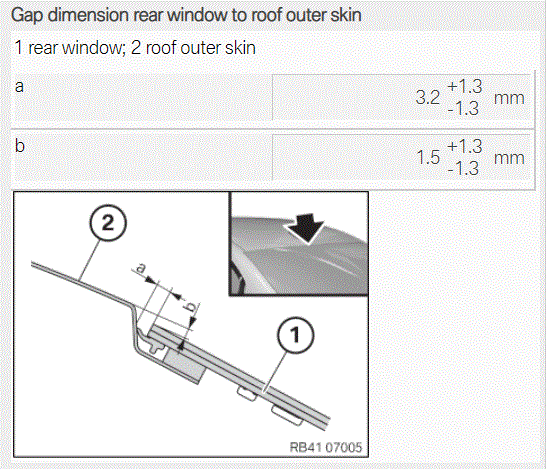

Fig 11: Back Glass And Roof Panel Body Gap Dimensions And Measurement Points (G82)

G00636717

Courtesy of BMW OF NORTH AMERICA, INC.

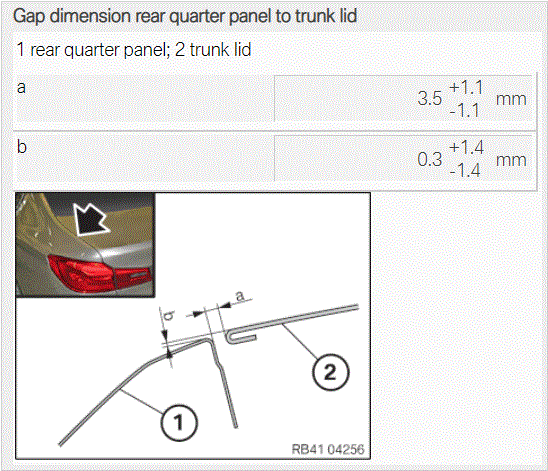

Fig 12: Quarter Panel And Trunk Lid Body Gap Dimensions And Measurement Points (G82) (1 Of 2)

G00636718

Courtesy of BMW OF NORTH AMERICA, INC.

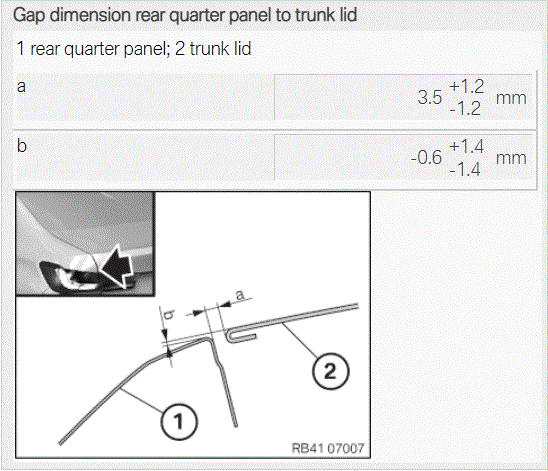

Fig 13: Quarter Panel And Trunk Lid Body Gap Dimensions And Measurement Points (G82) (2 Of 2)

G00636719

Courtesy of BMW OF NORTH AMERICA, INC.

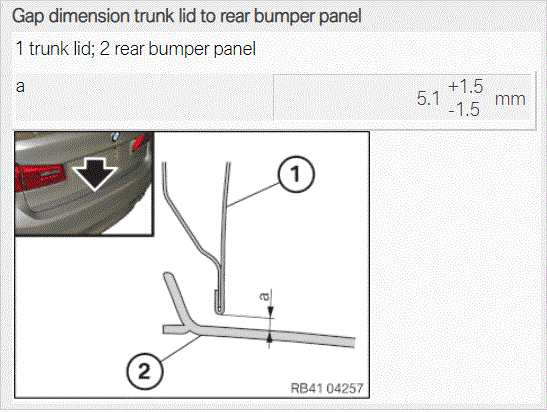

Fig 14: Trunk Lid And Rear Bumper Body Gap Dimensions And Measurement Points (G82)

G00636720

Courtesy of BMW OF NORTH AMERICA, INC.

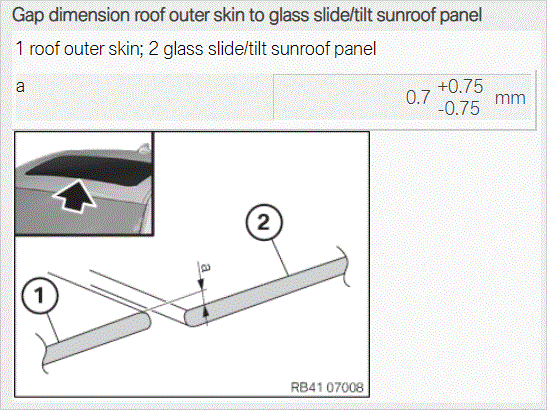

Fig 15: Moon Roof And Roof Panel Body Gap Dimensions And Measurement Points (G82) (1 Of 2)

G00636721

Courtesy of BMW OF NORTH AMERICA, INC.

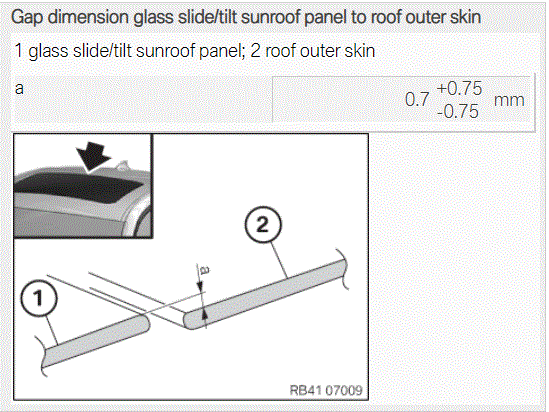

Fig 16: Moon Roof And Roof Panel Body Gap Dimensions And Measurement Points (G82) (2 Of 2)

G00636722

Courtesy of BMW OF NORTH AMERICA, INC.
