Adjusting Hood

Preliminary work

• Refer to REMOVING THE HOOD STRIKER .

Courtesy of BMW OF NORTH AMERICA, INC.

Check

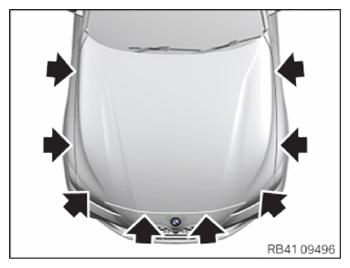

• Check the gap dimensions between the hood and the adjoining components.
  TECHNICAL DATA SPECIFICATION



  Gap dimension from hood to bumper cover
  1 hood; 2 bumper cover Courtesy of BMW OF NORTH AMERICA, INC.	a  3.5+1.2 -1.2 mm
  	b  1.0+1.5-1.5 mm

  TECHNICAL DATA SPECIFICATION



  Gap dimension hood to headlight
  1 hood; 2 headlight Courtesy of BMW OF NORTH AMERICA, INC.	a  5.3+1.8-1.8 mm

  Gap dimension hood to side panel
  1 hood; 2 side panel Courtesy of BMW OF NORTH AMERICA, INC.	a  3.3 +1-1 mm
  	0.5+1.6-1.6 mm

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

• Adjust the hood at the hood hinge,

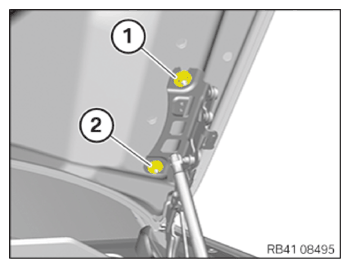

• Slacken the nuts (1) and (2) until the hood can be shifted.
• Shift the hood in a longitudinal direction and sideways until the hood has the specified gap dimension.
• Install the nuts (1) and (2) and tighten,
  TIGHTENING TORQUE SPECIFICATIONS



  Hood to the hinge
  Nut M8
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ADJUST THE STRIKER ON THE HOOD .
