Remove Hood
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:

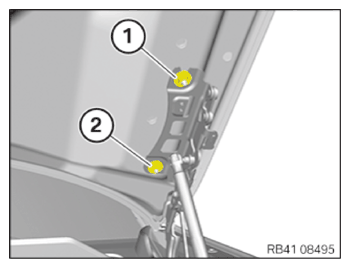

Perform the steps on the right and left side.
