Installing The Left Front Side Panel
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

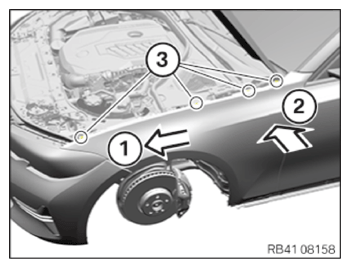

- With a second person, install the side panel towards the vehicle at an angle, shifting from the rear to the front.

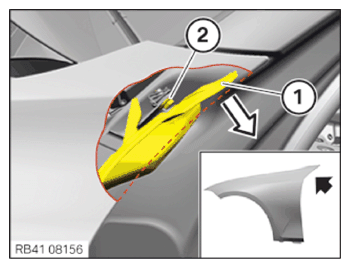

- Position the side panel in area of headlight (1) and abut in area of A-pillar (2).
- Join the screws (1).NOTE: To provide a better overview: Schematic diagram with partially hidden components.
- Open the front door.
Slightly pull the seal (1) downwards in the arrow direction.
- Join the screw (2).
- Close front door.

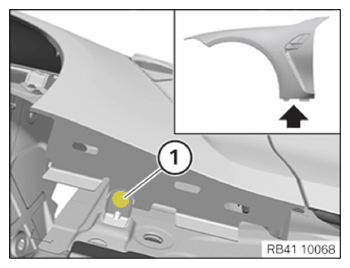

- Join the screws (1).

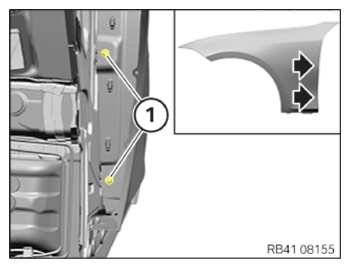

- Join the screw (1).

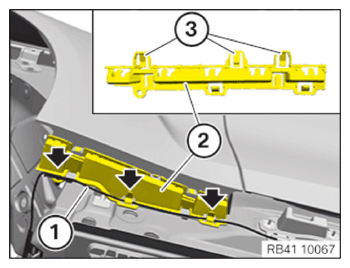

- Install the bracket (2) and clip in with the detents (3).
- Clip in the wiring harness (1) at the attachment points (arrows).

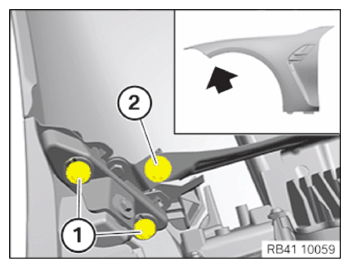

- Join the screw (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Front bumper panel to fender Torx screws 5x35 Tightening torque 3 Nm NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body - Adjust gap dimensions.
- Tighten all the screws on the side panel.TIGHTENING TORQUE SPECIFICATIONS

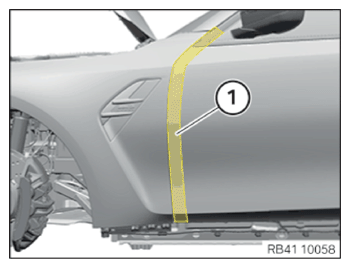

Side panel to holder for side panel Screw M6 Tightening torque 8 Nm - Remove protective film (1).

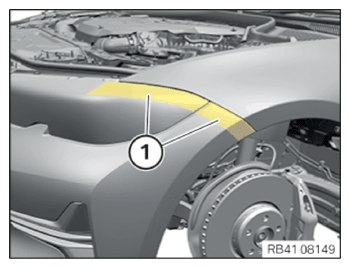

- Remove the protective film (1).
Follow-up work
- Refer to INSTALLING THE DOOR SILL TRIM PANEL .
- Refer to INSTALLING TANK COVER .
- Refer to INSTALLING THE UNDERSHIELD ON THE SIDES .
- Refer to INSTALLING THE FRONT UNDERSHIELD .
- Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to MOUNTING THE WHEEL .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT THE TOP REAR .
- Refer to INSTALLING THE LEFT HOOD SEAL .
- Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALL THE COVER IN THE ENGINE COMPARTMENT ON TOP .
