Preparing New Part

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions

NOTE: Perform the steps on the left and right side.

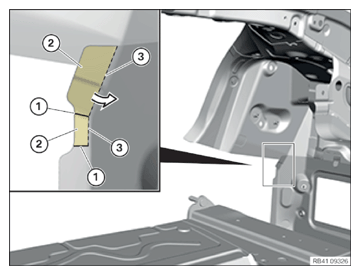

Make separating cuts (1) as shown.
Bend the sections (2) inwards at the curved lines (3) in the arrow direction.
NOTE: Tie back sheet metal cutouts 2 only after the final assembly of the new part. 2 blind rivets are installed in areas 2. Make the bores for them only after the final assembly of the new part and tying back the cutouts.

Courtesy of BMW OF NORTH AMERICA, INC.

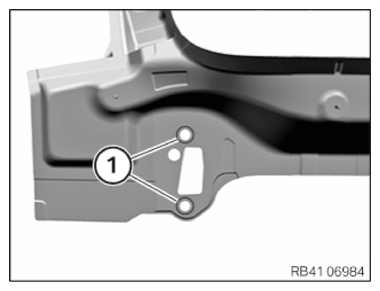

If necessary, increase size of bores (1) by a maximum of 10 mm in diameter.

Courtesy of BMW OF NORTH AMERICA, INC.

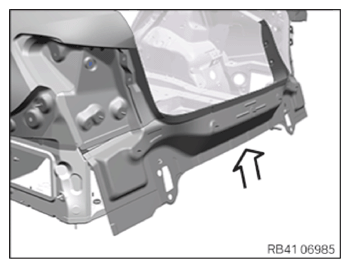

Install the outer skin and the inner section of the tail cowling together as a combination.
Adjust and fix the new parts together with the tailgate and the tail lights.

Courtesy of BMW OF NORTH AMERICA, INC.

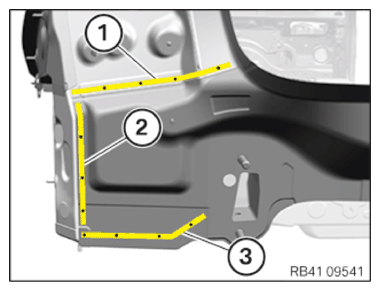

Areas (1) to (3): Make bores of Ø 4.2 mm for the blind rivet.

Area	Number
1	4
2	3
3	4

Courtesy of BMW OF NORTH AMERICA, INC.

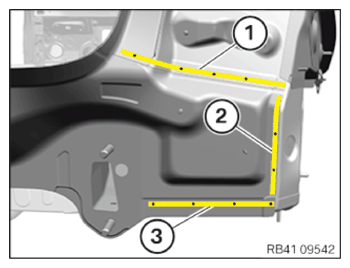

Areas (1) to (3): Make bores of Ø 4.2 mm for the blind rivet.

Area	Number
1	4
2	2
3	4

Courtesy of BMW OF NORTH AMERICA, INC.

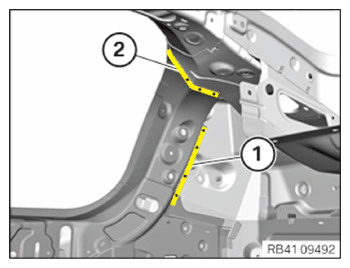

Areas (1) and (2): Make bores of Ø 4.2 mm for the blind rivet.

Area	Number
1	4
2	3

Courtesy of BMW OF NORTH AMERICA, INC.

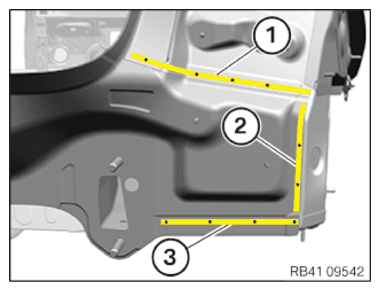

Prepare areas (1) to (3) for joining using the bonded rivet method (punch rivets).
Remove new parts and deburr bores.

Courtesy of BMW OF NORTH AMERICA, INC.
