Installing The Tail Panel

NOTE: Perform the steps on the left and right side.

Pre-clean the bonding surfaces on the vehicle and on the new part with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Clean the bonding surfaces on the vehicle and on the new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to bonding surfaces.
ADHESIVE SPECIFICATION

Body adhesive K5 195 ml 83195A59935

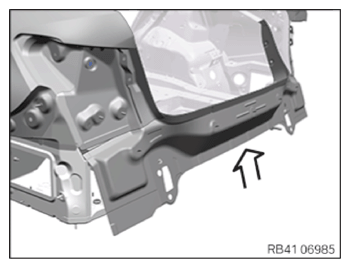

Install the outer skin and the inner section of the tail cowling together as a combination.

Courtesy of BMW OF NORTH AMERICA, INC.

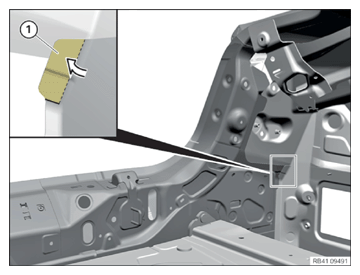

Tie back sheet metal cutout (1).
In area (1), make 2 bores of Ø 4.2 mm for a blind rivet. For the exact position, see the steps below.

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new part in the areas (1) to (3) with blind rivets N3.
CONSUMABLE SPECIFICATION

Blind rivet N3
ø 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new part in the areas (1) to (3) with blind rivets N3.

Courtesy of BMW OF NORTH AMERICA, INC.

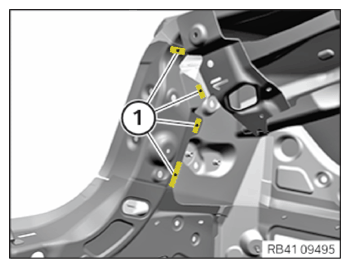

Rivet the new part in areas (1) with blind rivets N3.

Courtesy of BMW OF NORTH AMERICA, INC.

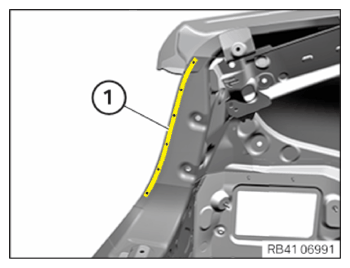

In the area (1), install 6 x punch rivets N4.
CONSUMABLE SPECIFICATION

Punch rivet N4
ø 3 mm; 4 mm long 83192457307

Courtesy of BMW OF NORTH AMERICA, INC.

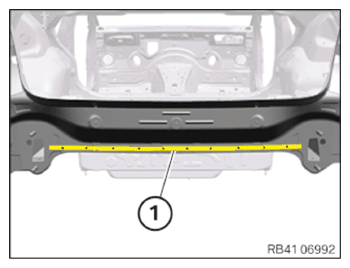

In area (1), use 10 punch rivets N5.
Observe the three panel connection:
Observe the placement direction of the punch rivet: Place the punch rivets from inside to outside.
CONSUMABLE SPECIFICATION

Punch rivet N5
ø 5 mm; 5 mm long 83192158079

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw
Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
Screw in the EMC screw.
CONSUMABLE SPECIFICATION

EMC screw SF Plus M5x15 83190301639
Seal the EMC screw with the sealant.
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310ml 83422409985

NOTE: TECHNICAL INFORMATION
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.

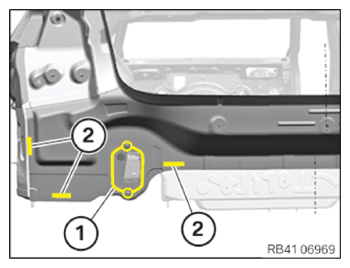

Press in the rear trim panel in area (1) and remove the emerging adhesive.
Before the adhesive hardens, install the support for the bumper cover.
After the adhesive has hardened, install 3 EMC screws in the areas (2) shown.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

screw
EMC screw, SF Plus, M5x15 83190301639
