41 21 SIDE FRAMES AND PILLARS i
>>
41 21 950 Replacing Reinforcement Of Roof Frame At Rear Left (Side Panel And Tail Panel Removed) (M4 2021-2023, Except Convertible)
>>
Preparing New Part
Preparing New Part

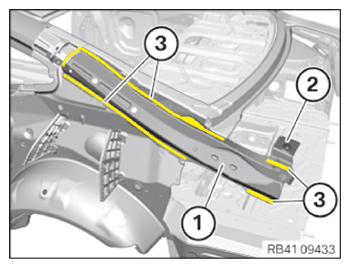

Adjust the new parts (roof frame reinforcement) (1) and the tension spring mount (2) together with the tail panel and the side panel.
Prepare new part in the areas (3) for joining by welding.
Courtesy of BMW OF NORTH AMERICA, INC.

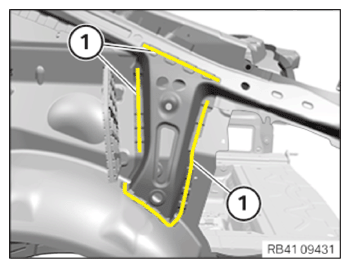

Fit in the new part tension strap.
Prepare new part in the areas (1) for joining through weld.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
