Collision - Body Panel Repair (2 Of 2) (G82 & G83)
>>
41 21 SIDE FRAMES AND PILLARS i
>>
41 21 950 Replacing Reinforcement Of Roof Frame At Rear Left (Side Panel And Tail Panel Removed) (M4 2021-2023, Except Convertible)
>>
Installing Reinforcement At Rear Of Roof Frame
Installing Reinforcement At Rear Of Roof Frame

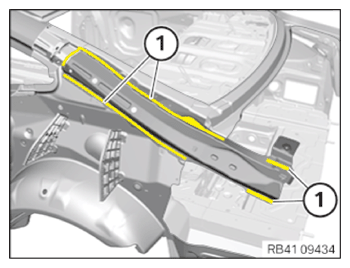

Install new parts and weld in the areas (1).
Courtesy of BMW OF NORTH AMERICA, INC.

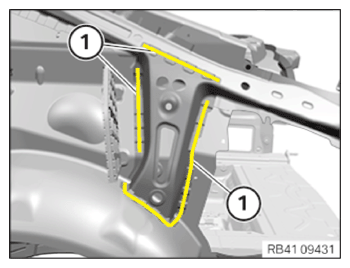

Install new part and weld in the areas (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
